Ricoh M281 Series - SENSOR LAYOUT; MP 501;601

Jam Detection
D255/D256/M281/M282 6-100 SM

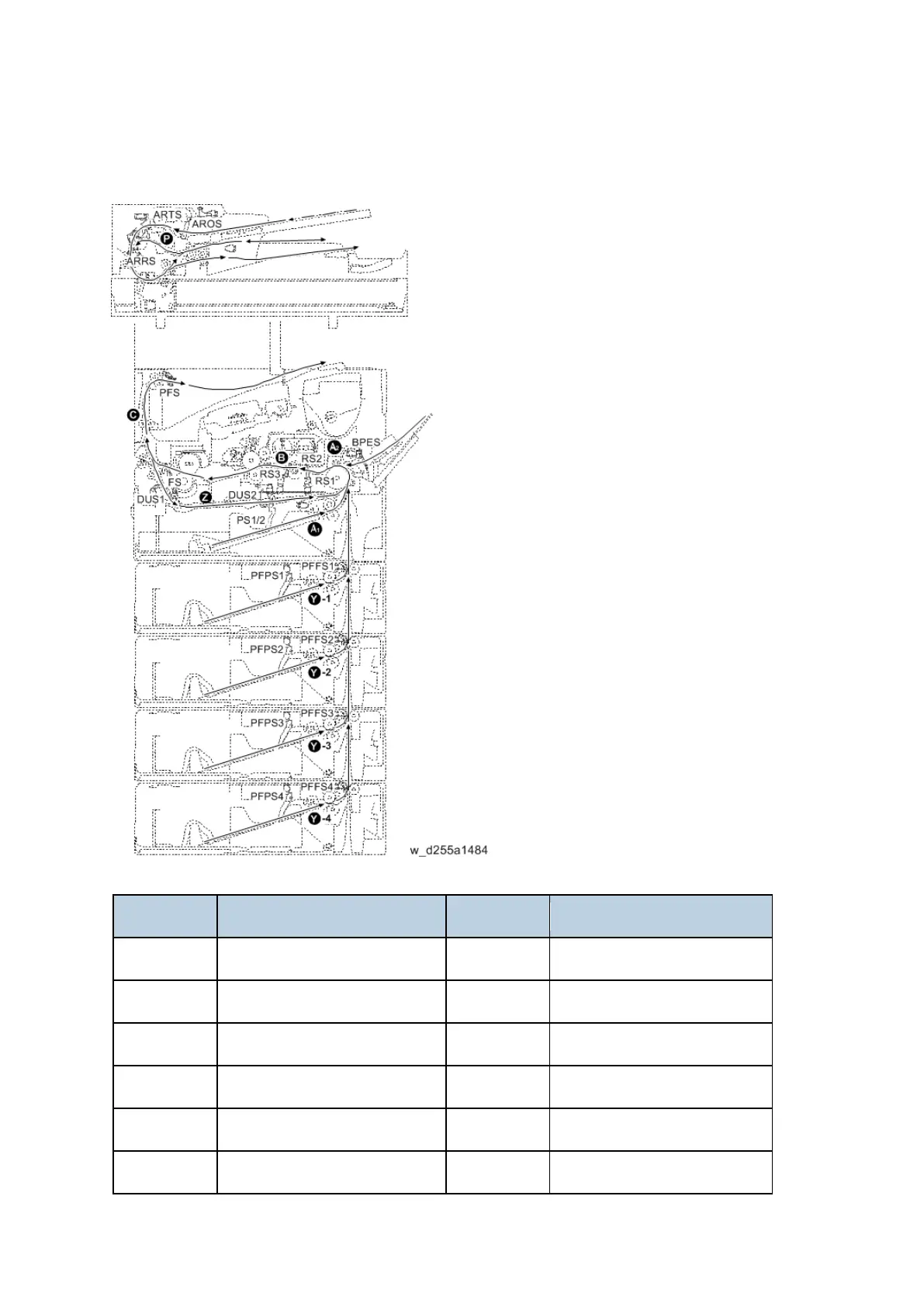

6.11.3 SENSOR LAYOUT
MP 501/601
Abbreviation Name Abbreviation Name
AROS ARDF original sensor PFPS1 Paper end sensor 1
*1
ARRS ARDF registration sensor PFPS2 Paper end sensor 2
*1
ARTS ARDF original timing sensor PFPS3 Paper end sensor 3
*1
BPES Bypass paper end sensor PFPS4 Paper end sensor 4
*1
DUS1 Duplex sensor 1 PFS Paper exit full sensor
DUS2 Duplex sensor 2 PS1 Paper end sensor 1
