Exterior Covers (MP 501/601)

SM 4-29 D255/D256/M281/M282

Replacement

and Adjustment

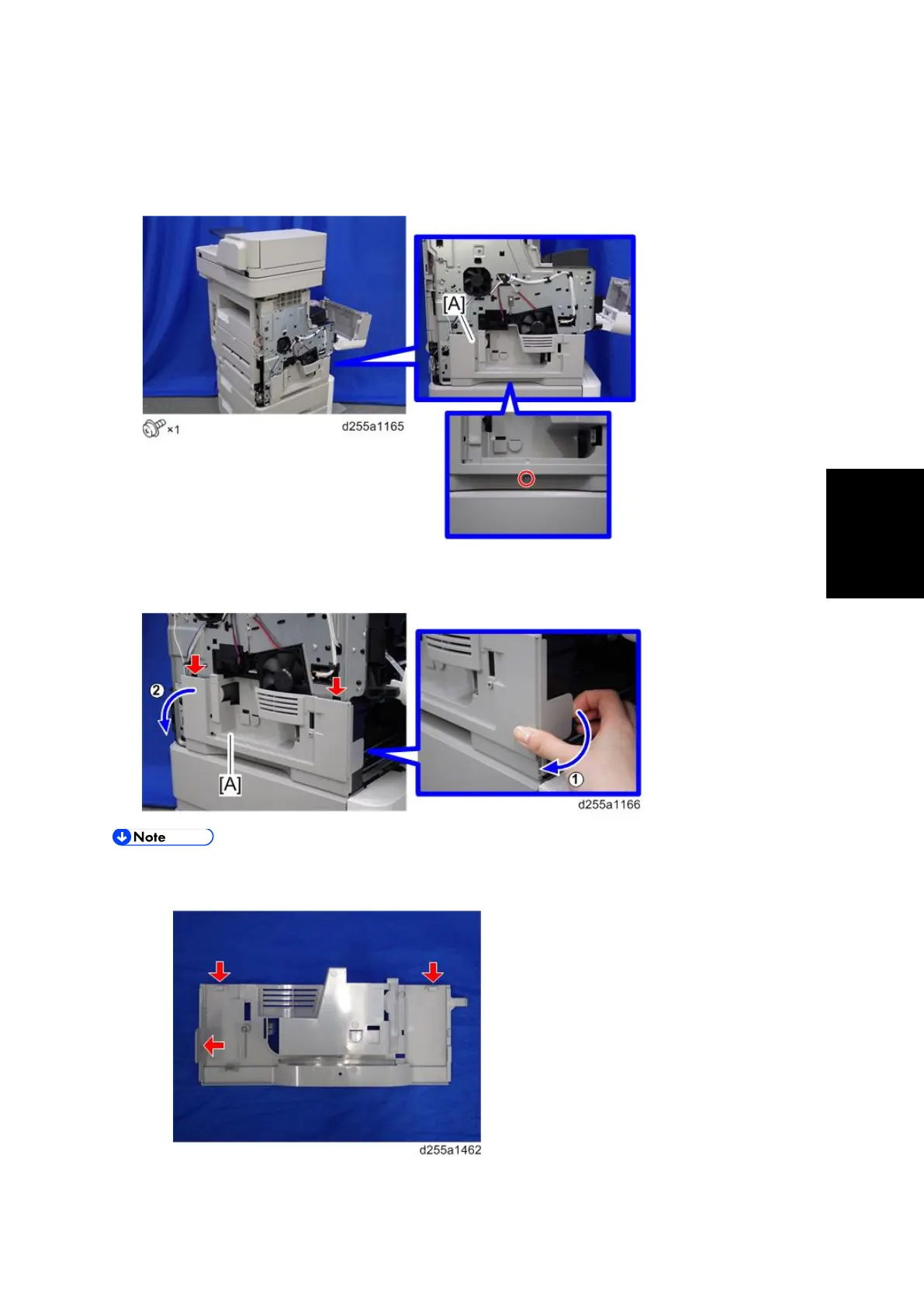

4.6.7 LEFT LOWER COVER

1. Remove the left middle cover. (page 4-27)

2. Remove the screw holding the left lower cover [A].

3. Release the hook by opening the right side of the left lower cover as shown below, and

then remove the left lower cover [A]. (hook×3)

 Be careful not to damage the hooks on the inside of the left lower cover when you remove

or install the left lower cover.
