Ricoh M281 Series - REAR LEFT STAY

Exterior Covers (MP 501/601)
SM 4-37 D255/D256/M281/M282
Replacement
and Adjustment

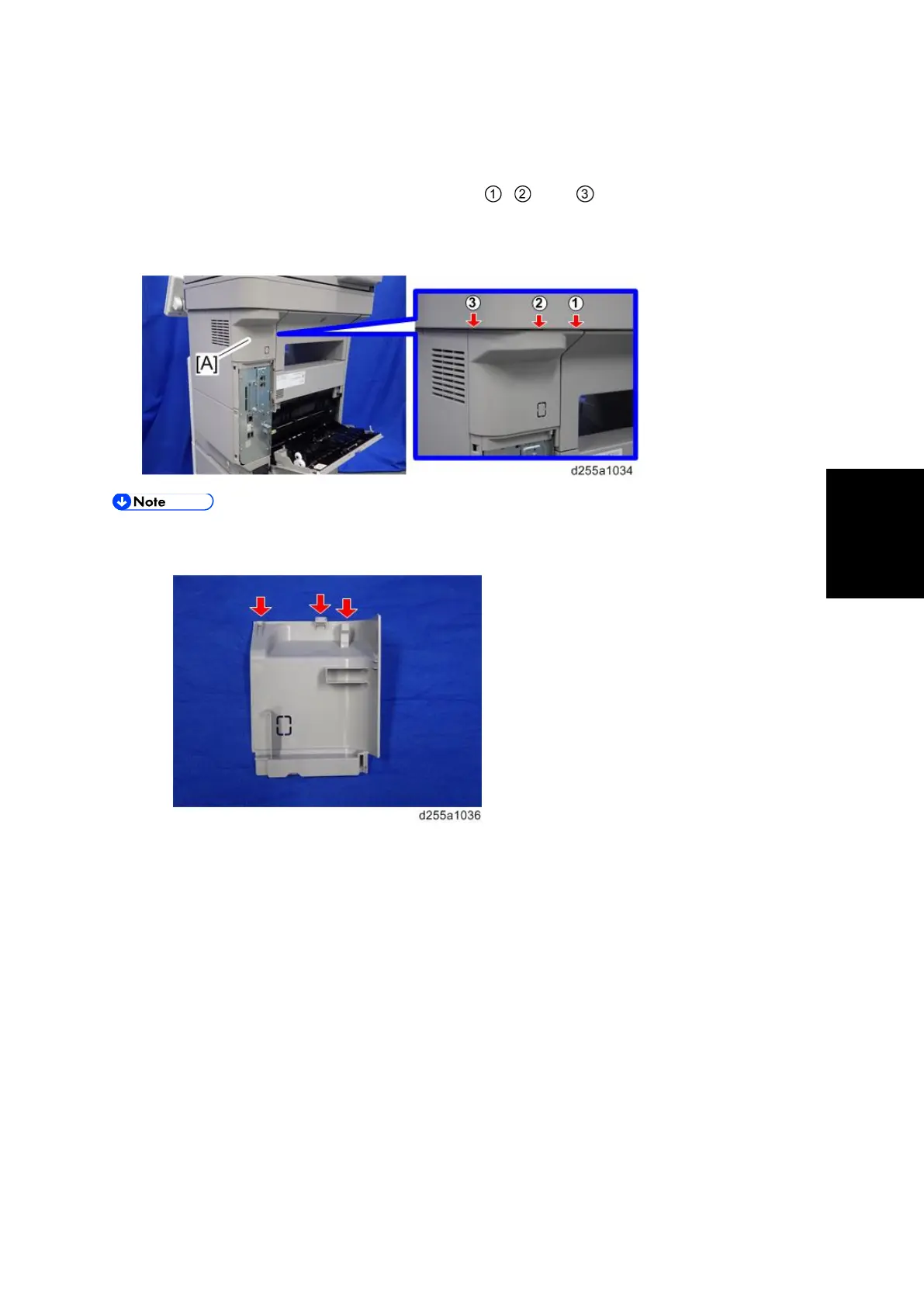

4.6.13 REAR LEFT STAY
1. Remove the controller cover. (page 4-45)
2. Insert a flathead screwdriver in the order of
, , and to release three hooks of
the rear left stay [A].
3. Remove the rear left stay [A].
 Be careful not to damage the hooks on the inside of the rear right stay when you remove
or install the rear right stay.
