Exterior Covers (MP 501/601)
SM 4-27 D255/D256/M281/M282
Replacement
and Adjustment

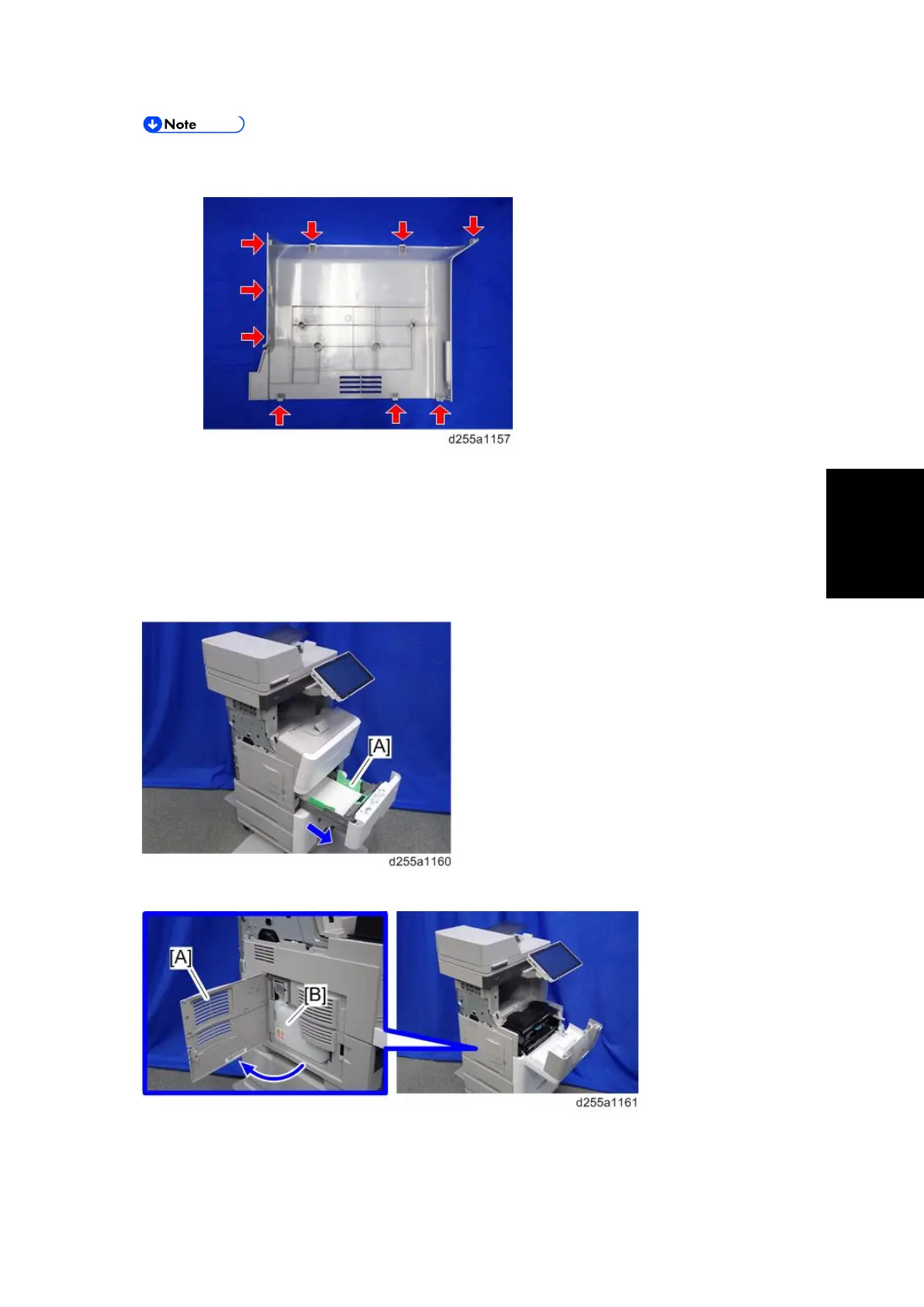

 Be careful not to damage the hooks on the inside of the left upper cover when you
remove or install the left upper cover.
4.6.6 LEFT MIDDLE COVER
1. Remove the following covers.
 Left upper cover (page 4-26)
 Left rear cover (page 4-30)
2. Remove the paper feed tray [A] by pulling it out.
3. Open the waste toner bottle cover [A], and then remove the waste toner bottle [B].
