Ricoh M281 Series - BYPASS TRAY UNIT; BYPASS PAPER FEED ROLLER

Bypass Tray Unit
D255/D256/M281/M282 4-114 SM
4.20 BYPASS TRAY UNIT
4.20.1 BYPASS PAPER FEED ROLLER
1. Remove the following covers.
 MP 501/601: Front cover (page 4-15), Right lower cover (page 4-22), Left middle cover
(page 4-27)
 SP 5300/5310: Front cover (page 4-50)

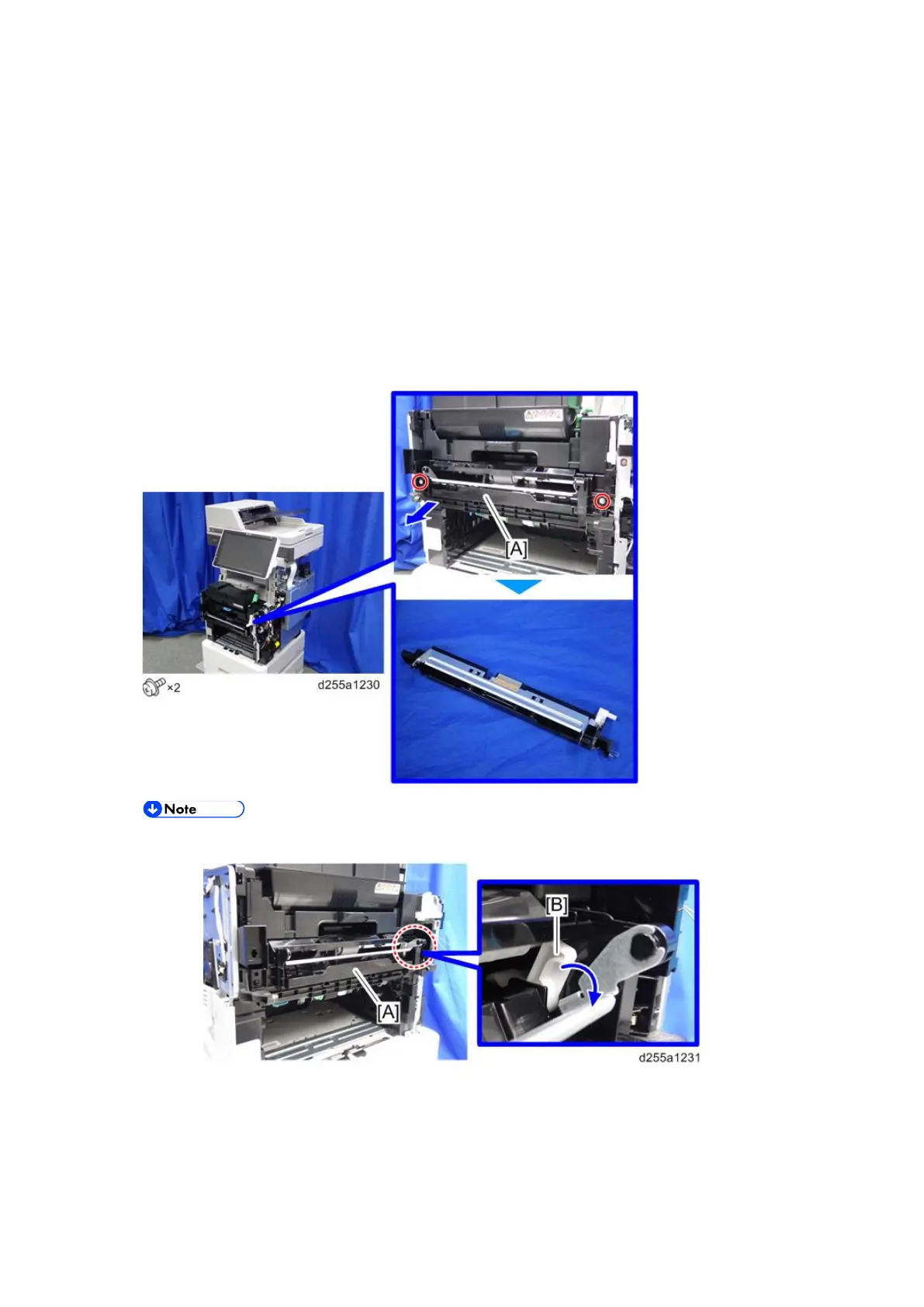

2. Remove the bypass bottom plate unit [A].
 When removing the bypass bottom plate unit [A], rotate the lever [B].
