Optional Counter Interface Unit Type M12 (B870-21) (MP 501/601 Only)
D255/D256/M281/M282 2-38 SM
2.5 OPTIONAL COUNTER INTERFACE UNIT TYPE M12
(B870-21) (MP 501/601 ONLY)

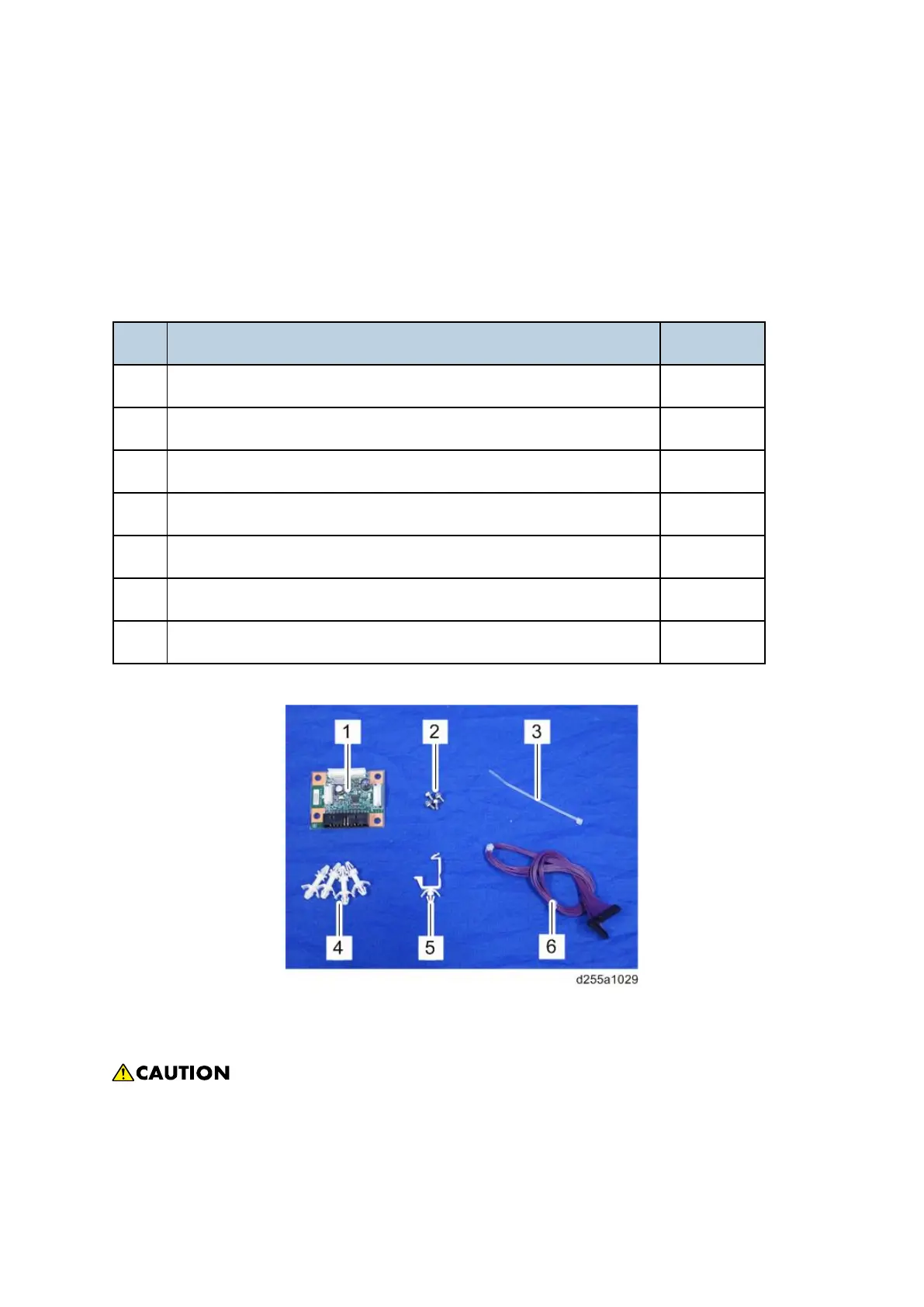

2.5.1 ACCESSORY CHECK
No. Description Q’ty
1 MKB board 1
2 Tapping screw: M3x6 4
3 Harness band 1
4 Stud 4
5 Harness clamp: LW S-0711 1
6 Harness 1
- EMC address decal 1
2.5.2 INSTALLATION PROCEDURE
 Turn OFF the main power, and unplug the machine power cord before starting the
following procedure.
1. Open the rear upper cover [A].
