Ricoh M281 Series - SP 5300;5310

Jam Detection
SM 6-101 D255/D256/M281/M282
Troubleshooting

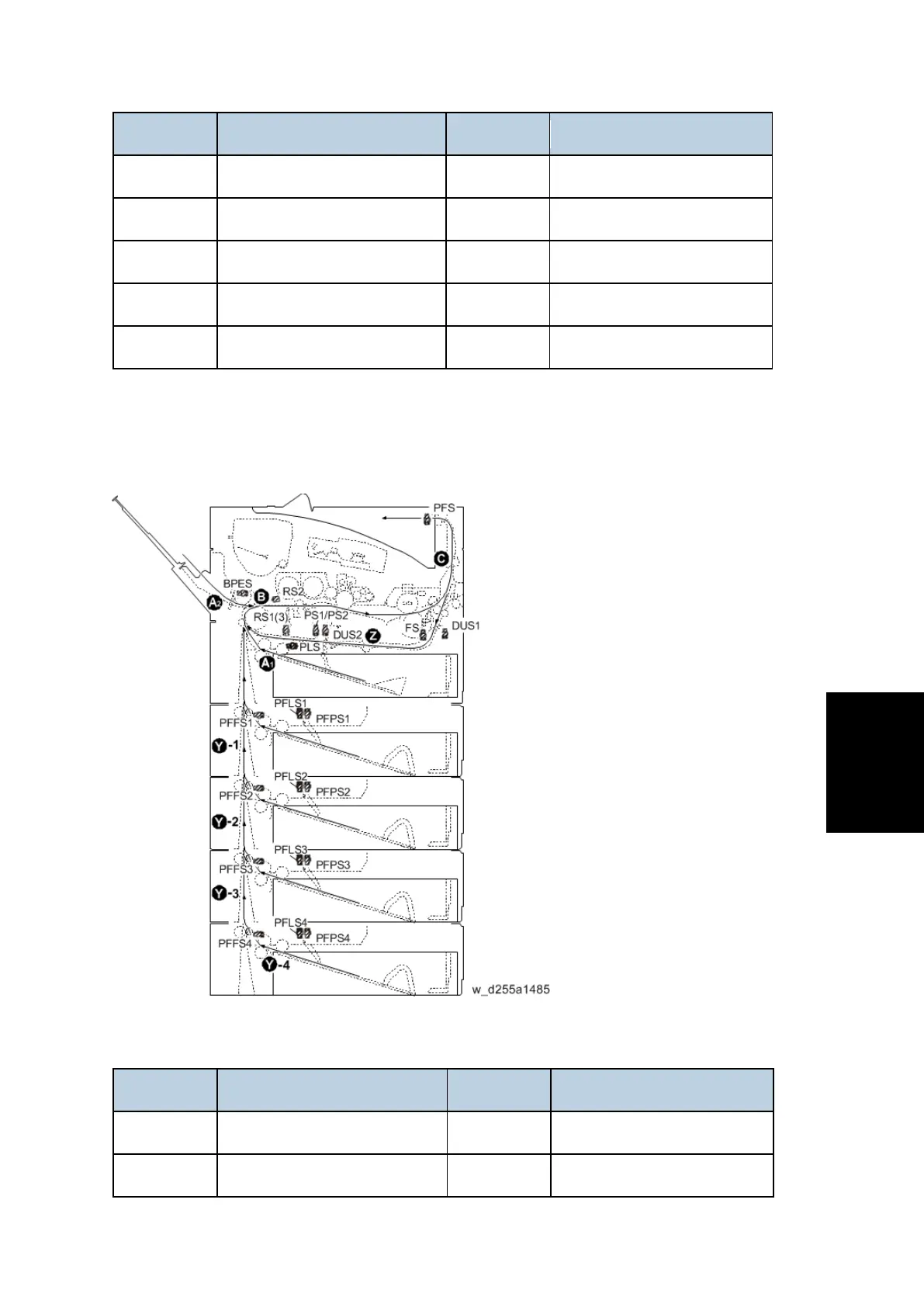

Abbreviation Name Abbreviation Name
FS Fusing sensor PS2 Paper end sensor 2
PFFS1 Paper feed sensor 1
*1
RS1 Registration sensor 1
PFFS2 Paper feed sensor 2
*1
RS2 Registration sensor 2
PFFS3 Paper feed sensor 3
*1
RS3 Registration sensor 3
PFFS4 Paper feed sensor 4
*1
*1 Optional paper feed unit
SP 5300/5310
Abbreviation Name Abbreviation Name
BPES Bypass paper end sensor PFPS1 Paper end sensor 1
*1
DUS1 Duplex sensor 1 PFPS2 Paper end sensor 2
*1
