5.2 BOARDS
5.2.1 FCU

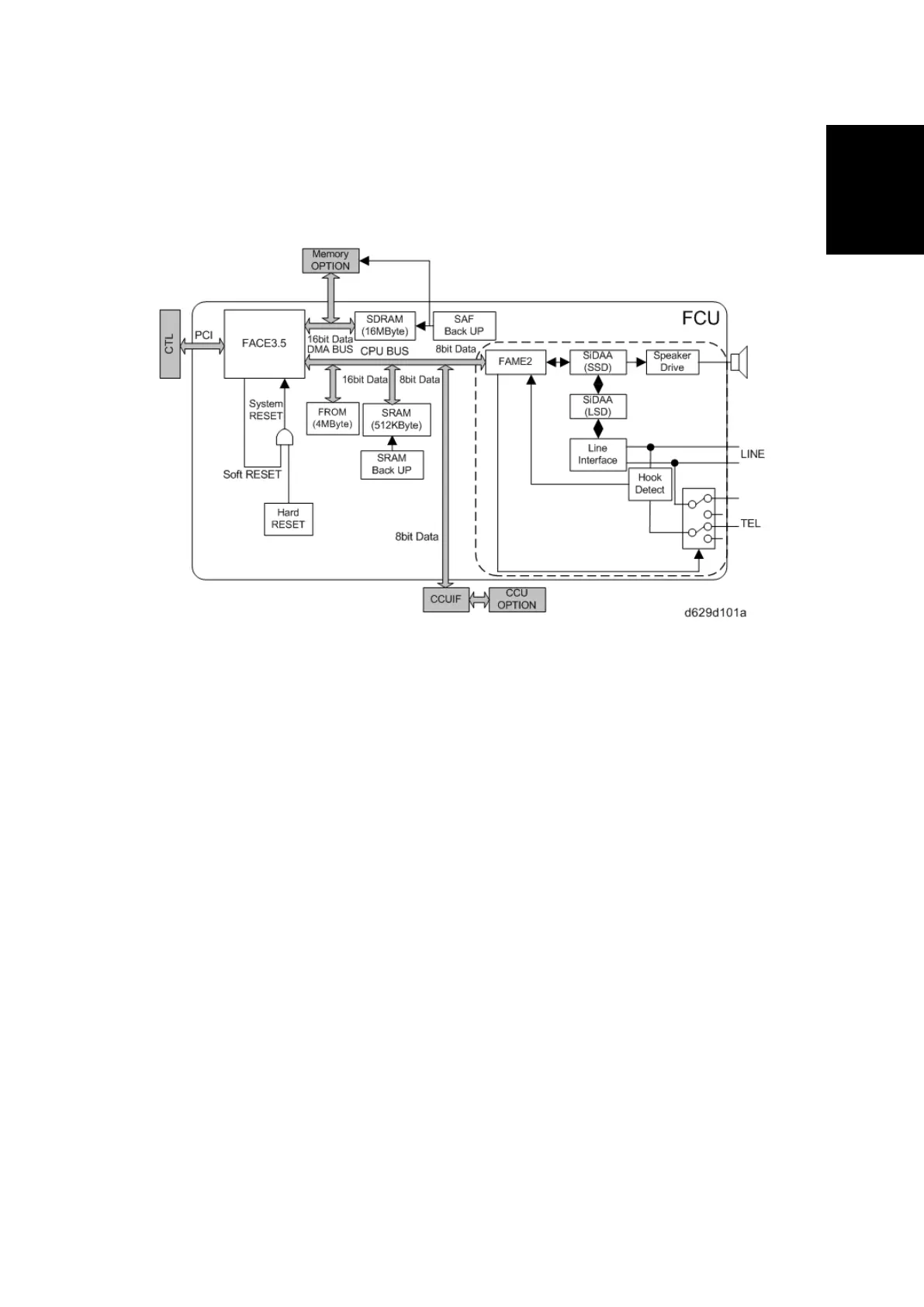

The FCU (Facsimile Control Unit) controls fax communications, the video interface to the base
copier's engine, and all the fax options.
FACE3.5 (Fax Application Control Engine)
 CPU
 Data compression and reconstruction (DCR)
 DMA control
 Clock generation
 DRAM backup control
Modem (FAME2)
V.34, V33, V17, V.29, V.27ter, V.21, and V.8
DRAM
The 16 MB of DRAM is shared as follows.
 SAF memory: 4MB
 Working memory: 4MB
 Page memory: 4MB
 The SAF memory is backed up by a rechargeable battery.
