Drum Unit
SM 4-91 D255/D256/M281/M282
Replacement
and Adjustment
4.14 DRUM UNIT
4.14.1 DRUM UNIT
1. Remove the development unit. (page 4-88)

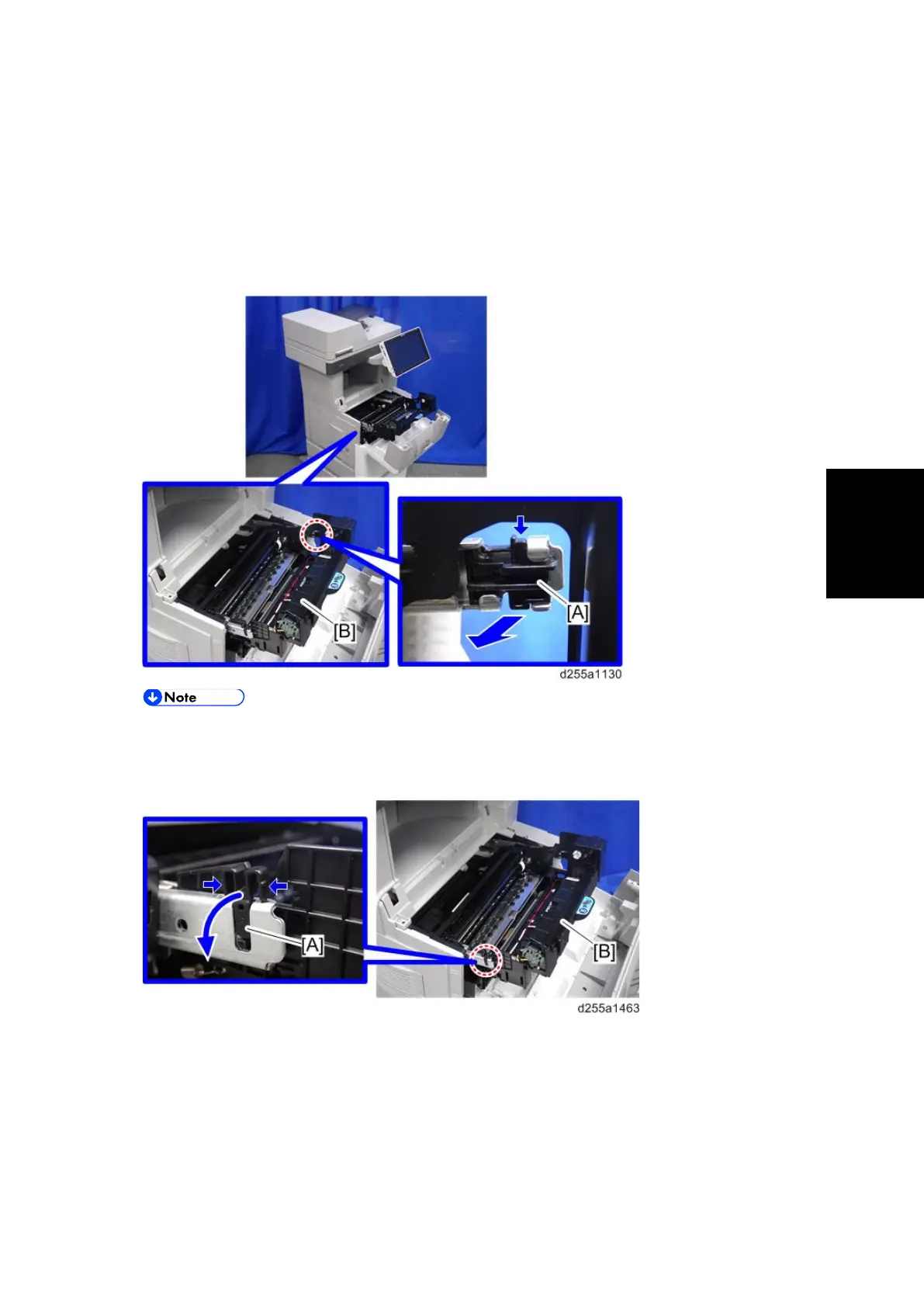

2. Remove the right lock lever [A] from the drum unit [B].
 Be careful not to lose the right lock lever [A]. The right lock lever is not included in the
drum unit as a service part.
3. Remove the left lock lever [A] from the drum unit [B].
