Bypass Tray Unit
SM 7-27 D255/D256/M281/M282
Detailed
Descriptions
7.11 BYPASS TRAY UNIT

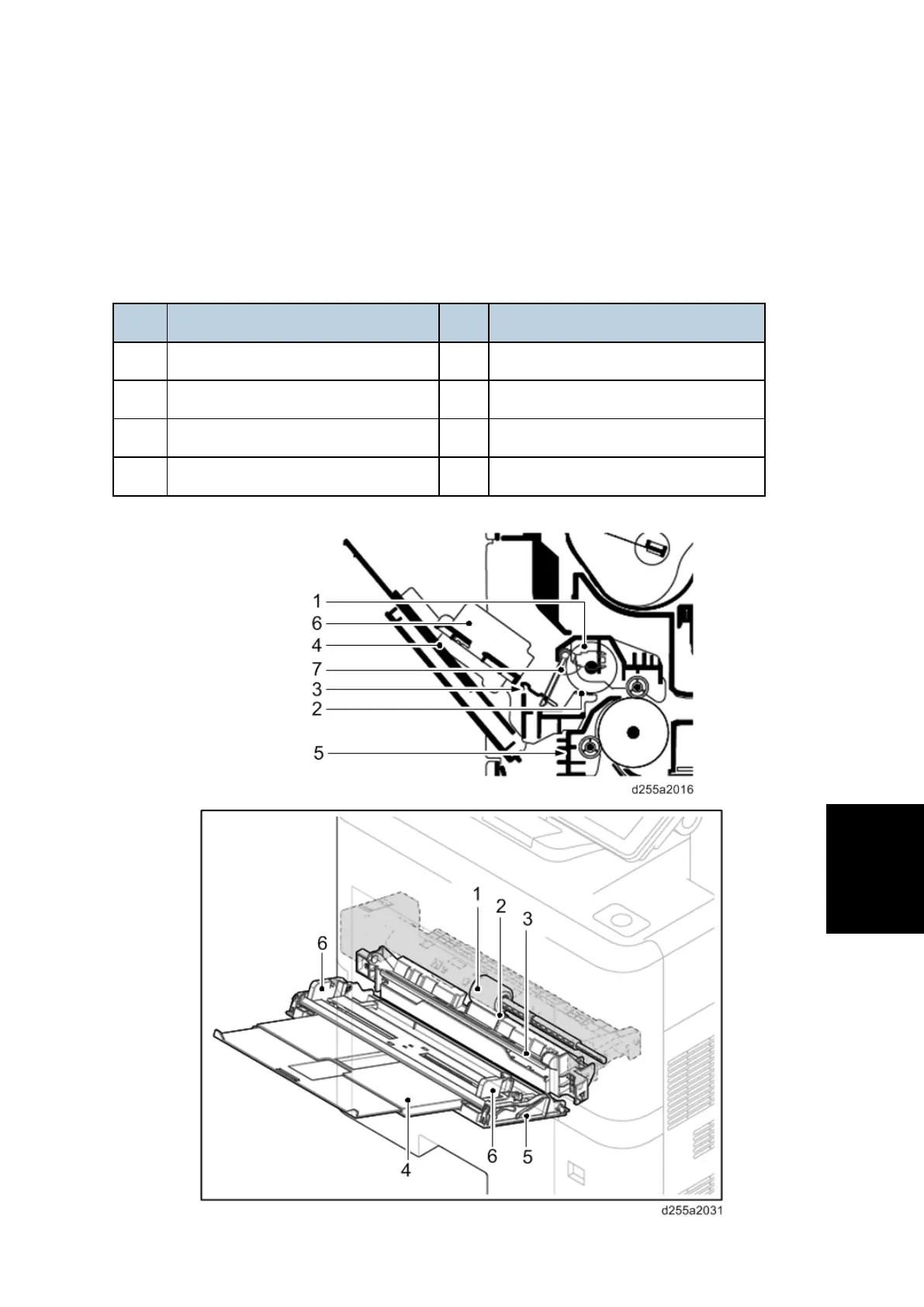

The bypass tray can contain 100 sheets. Feeding from the bypass tray is performed by the
rotation of the bypass paper feed roller. The bypass separation pad prevents paper from multiple
feeding.
No. Name No. Name
1 Bypass paper feed roller 5 Bypass frame
2 Bypass separation pad 6 Bypass paper width guide
3 Bypass bottom plate 7 Actuator (bypass paper end sensor)
4 Bypass tray
