1.Replacement and Adjustment
6
Left Top Cover

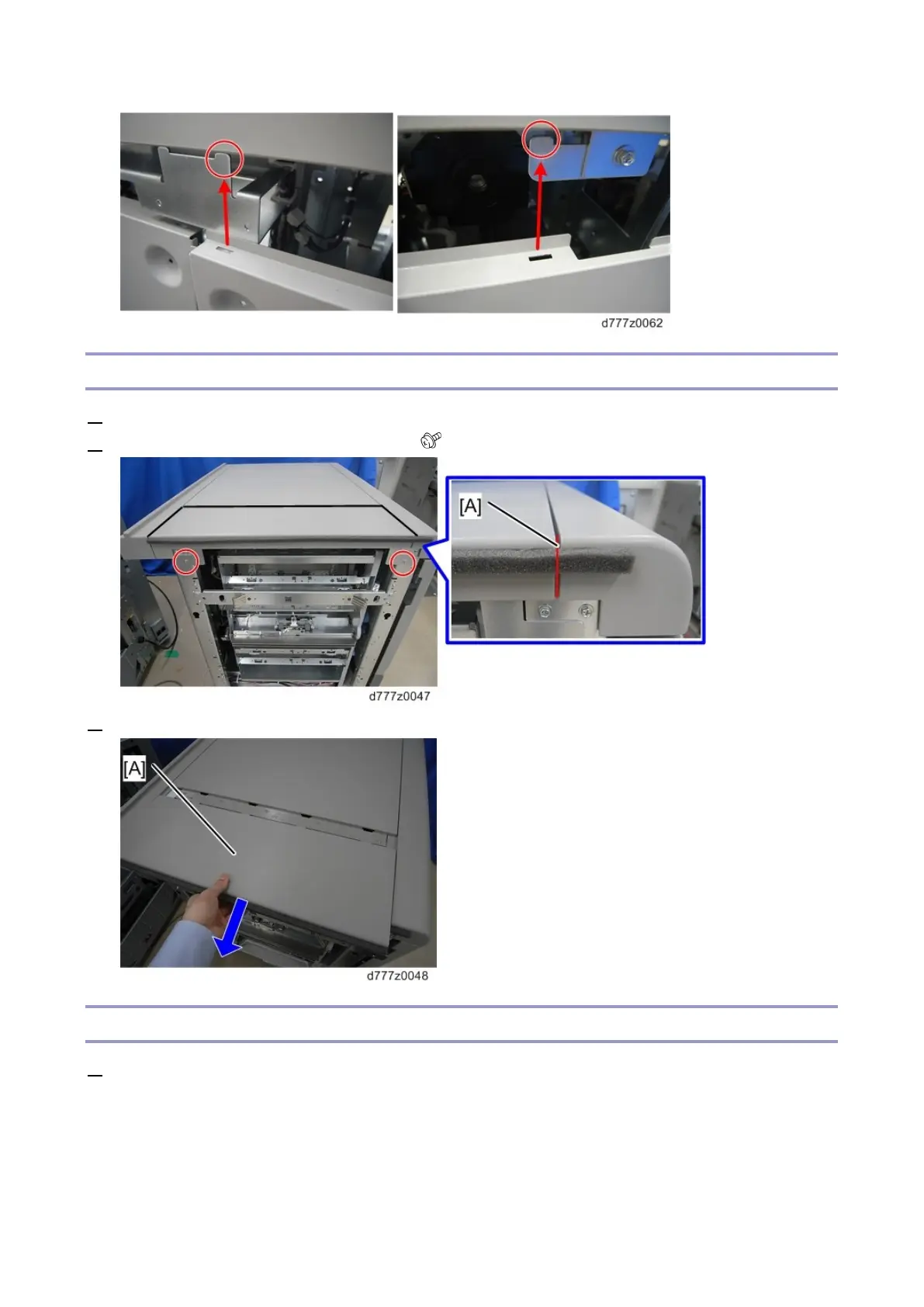

1. Cut the cushion at the position [A] along the groove.
2. Remove the screws on the left top cover ( x2).
3. Slide the left top cover [A] in the direction of the blue arrow and remove it.
Center Top Cover
1. Remove the left top cover (Left Top Cover)
