Ricoh RT5120 - Tray 2 Pickup Belt Motor

1.Replacement and Adjustment
66
Re-installation

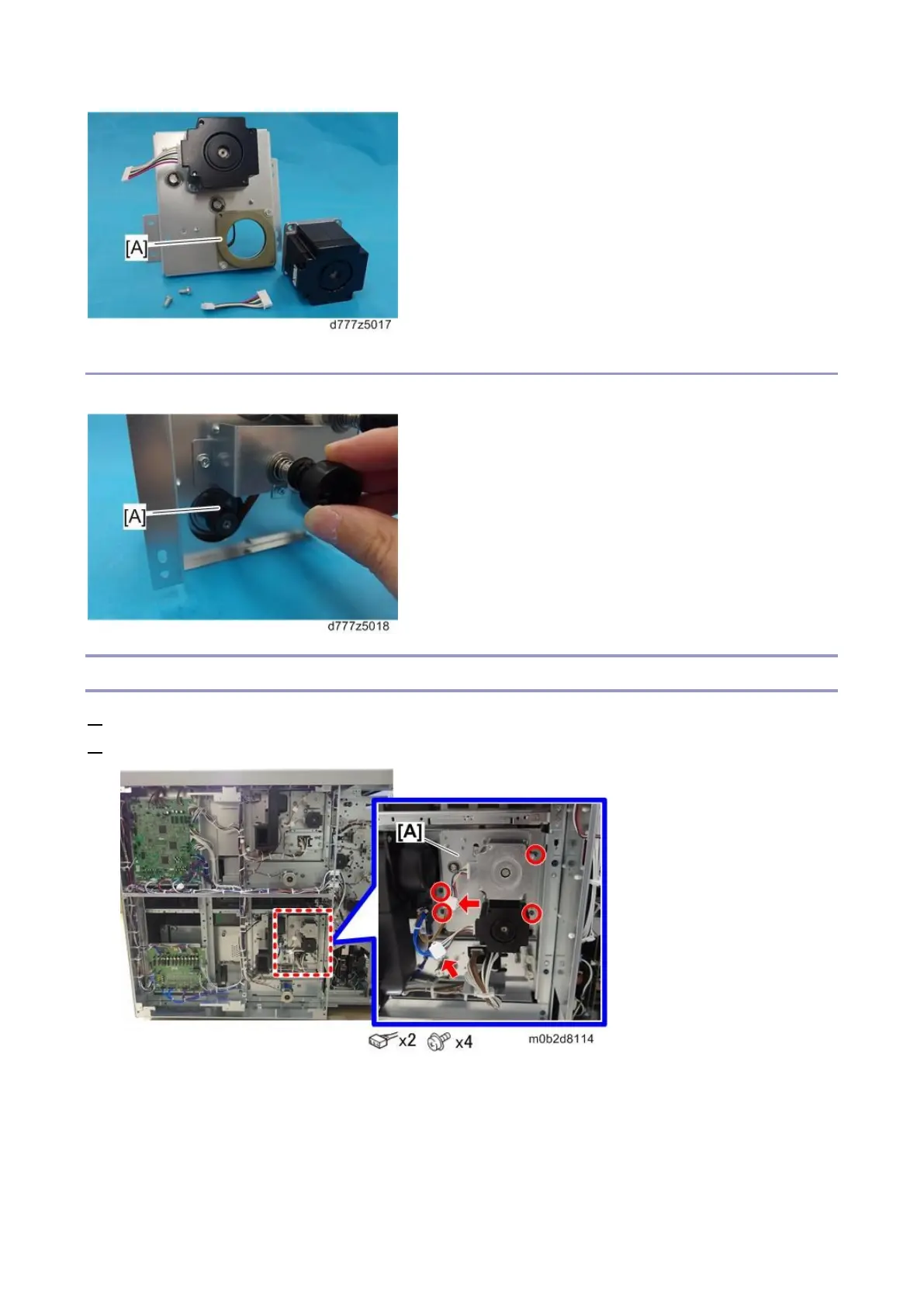

When installing the grip motor, make sure that the motor is correctly placed on the timing belt [A].
Tray 2 Pickup Belt Motor
1. Remove the rear right and left covers. (Rear Right Cover, Rear Left Cover)
2. Remove the tray 2 grip motor bracket [A].
