1.Replacement and Adjustment
115

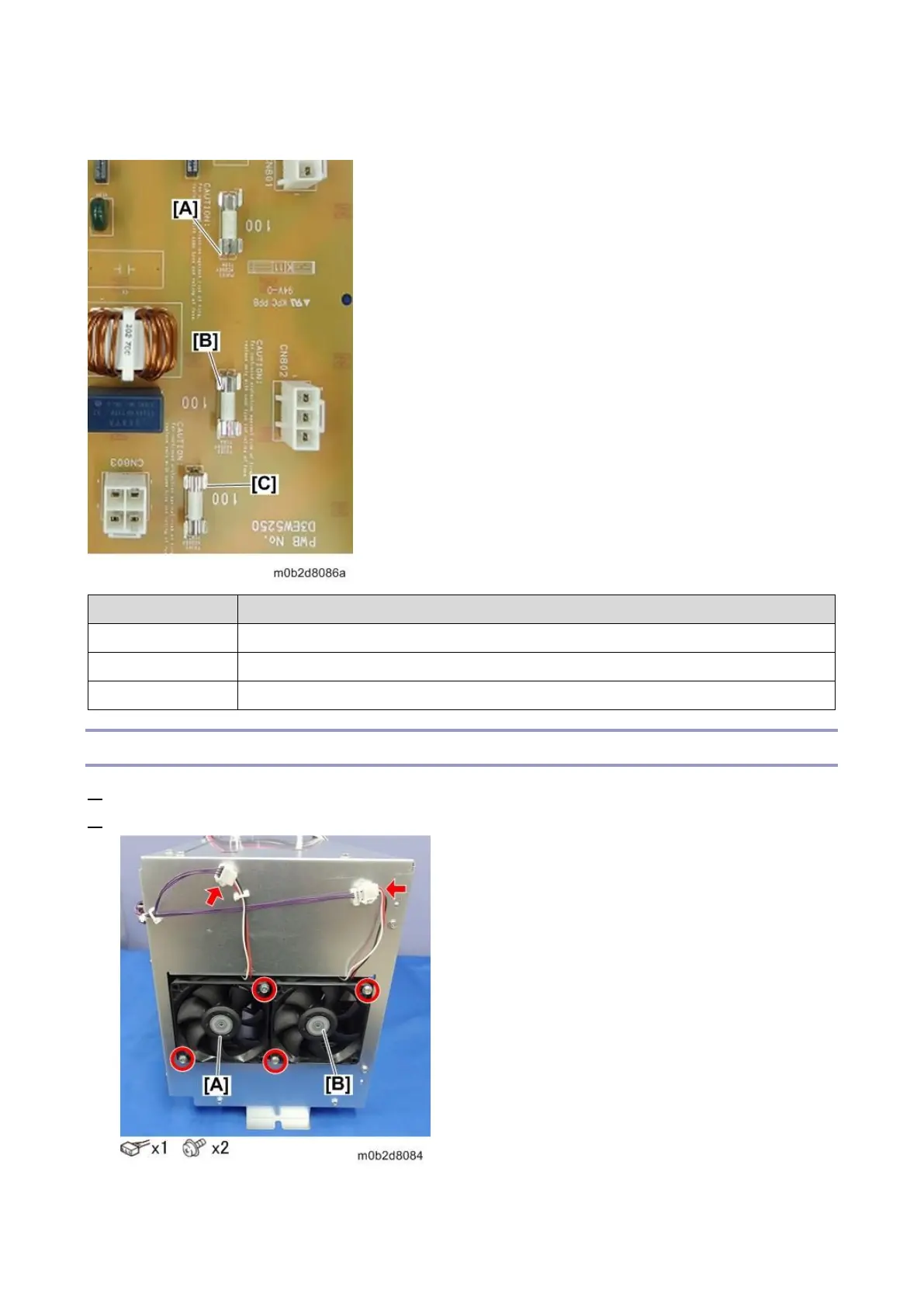

Replaceable fuses on the AC drive board
Fuse
[A]
FU101: 10A, 250V
[B]
FU102: 10A, 250V
[C]
FU103: 10A, 250V
PSU Cooling Fan 1, 2
1. Remove the PSU box (PSU box)
2. Remove PSU cooling fan 1 [A] and PSU cooling fan 2 [B].
