1.Replacement and Adjustment
5

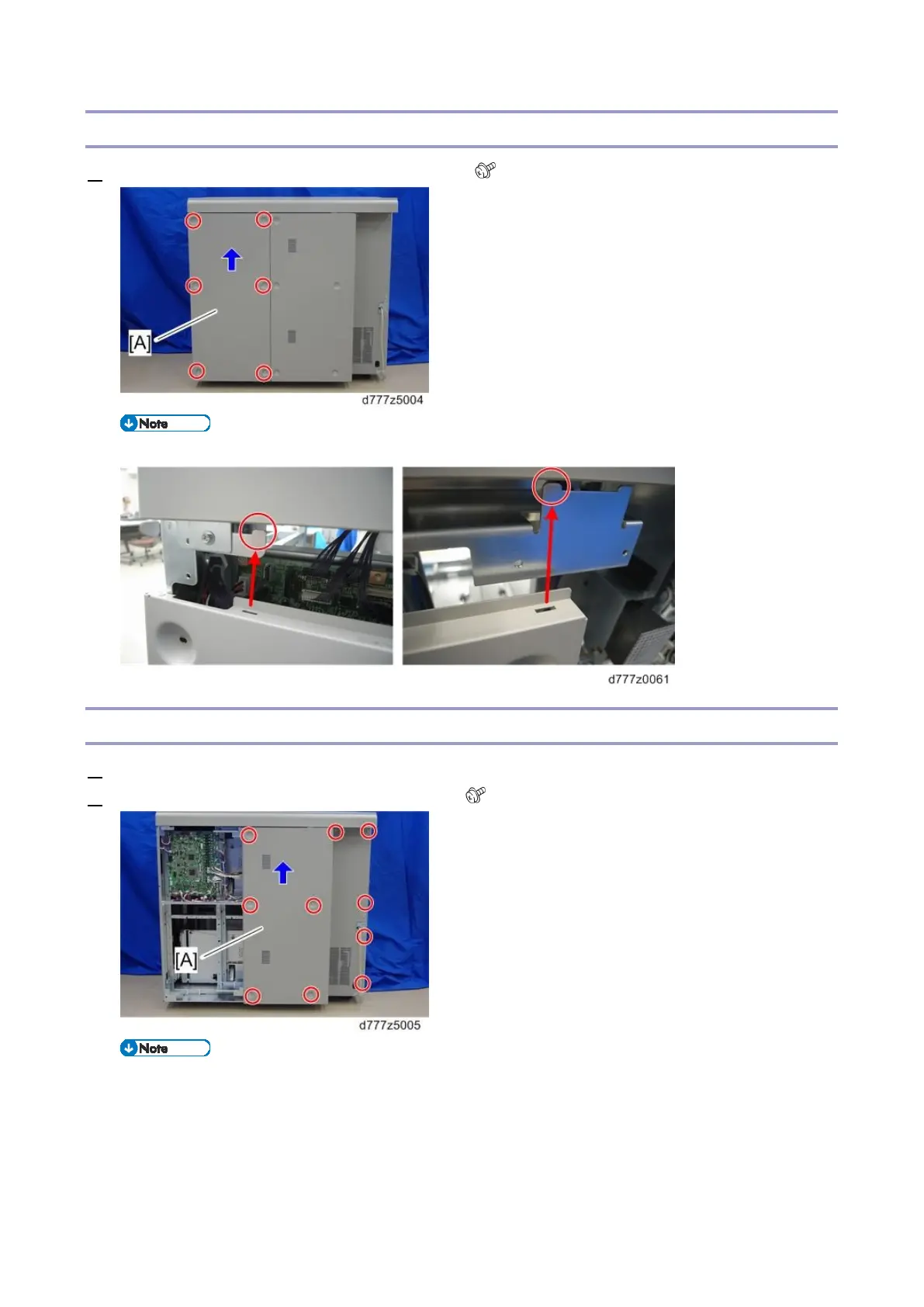

Rear Right Cover
1. Lift the rear right cover [A] slightly and remove it ( x6).
 When attaching the rear right cover, hang it on the hook.
Rear Left Cover
1. Remove the rear right cover (Rear Right Cover)
2. Lift the rear left cover [A] slightly and remove it ( x10).
 When attaching the rear left cover, hang it on the hook.
