Ricoh RT5120 - Rear Side; Main Board; Motor Control Board

1.Replacement and Adjustment
60
Rear Side
Main Board

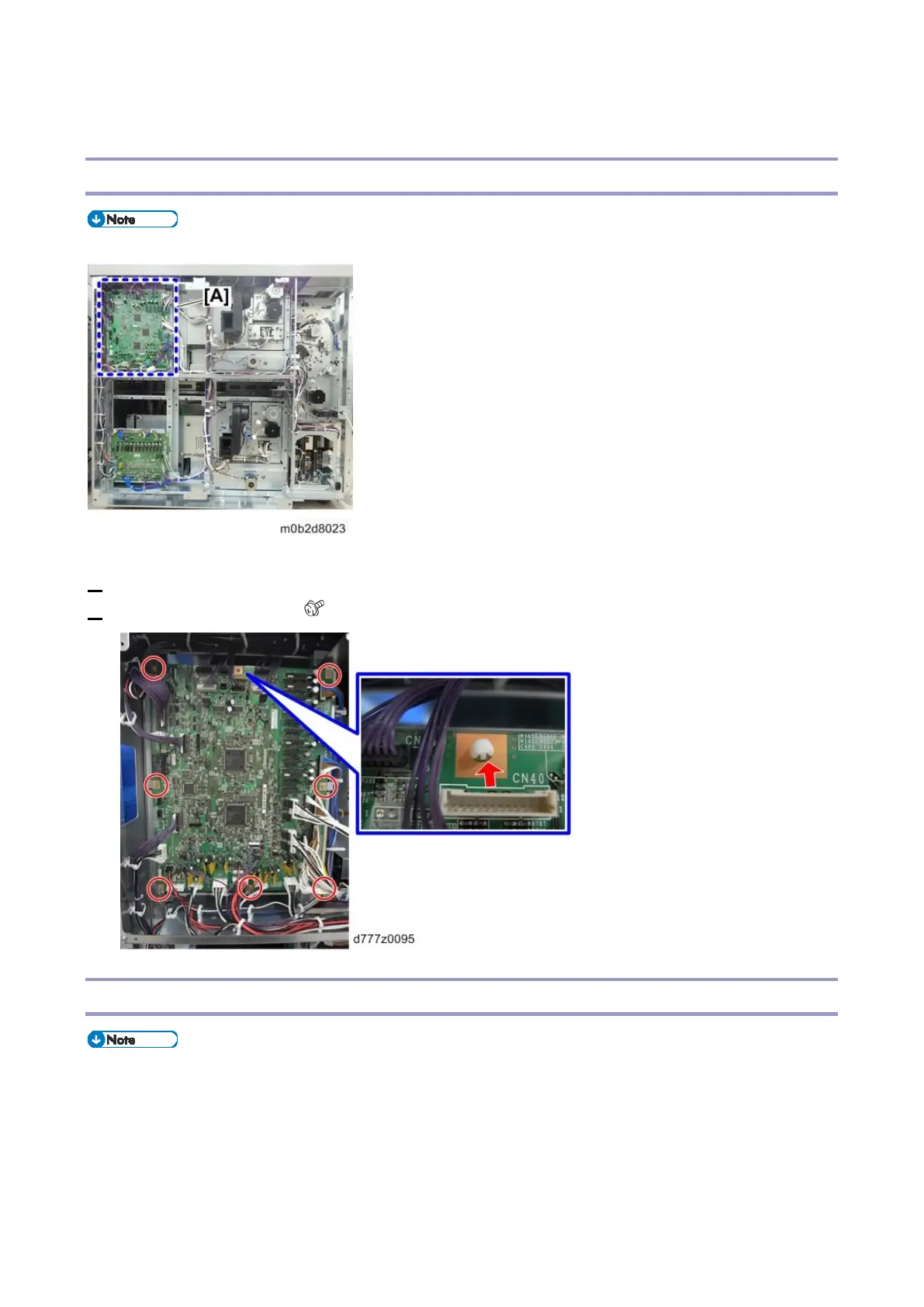

Main Board [A] Location
1. Remove the rear right and left covers (Rear Right Cover,Rear Left Cover).
2. Remove the main board ( x7, hook x1, all connectors and clamps)
Motor Control Board
The position of the motor control board [A]
