Ricoh RT5120 - Tray 1 Vertical Transport Contact Sensor

1.Replacement and Adjustment
103

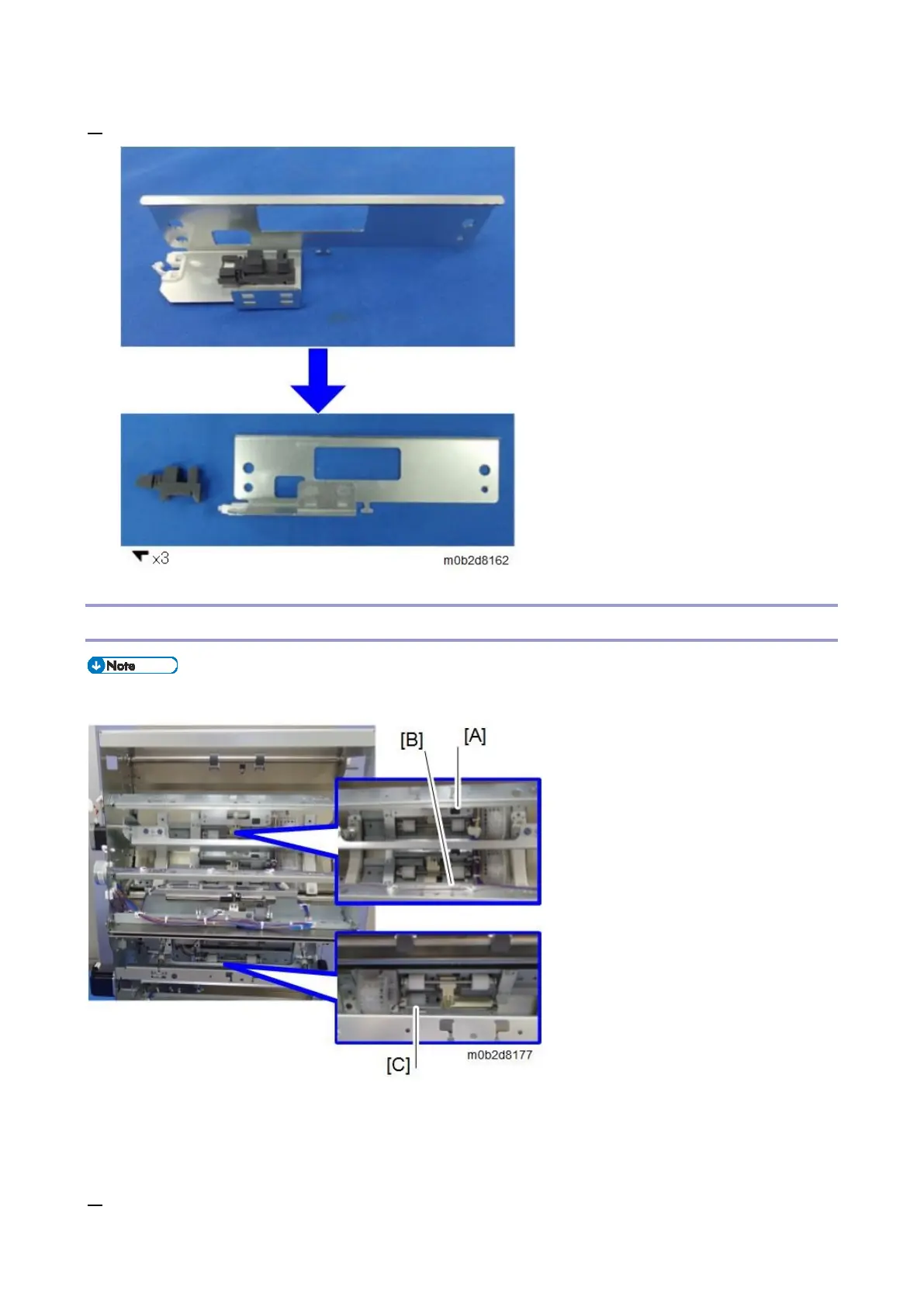

4. Remove the tray 1 vertical transport exit contact sensor from the sensor bracket.
Tray 1 Vertical Transport Contact Sensor
The position of the contact sensors on the left side of the vertical transport unit is shown below.
[A]: Tray 1 Vertical Transport Contact Sensor
[B]: Tray 1 Vertical Transport Exit Contact Sensor
[C]: Tray 2 Vertical Transport Exit Contact Sensor
1. Remove the vertical feed unit (Vertical Feed Unit)
