Ricoh RT5120 - Vertical Feed Unit and Motors

1.Replacement and Adjustment
70

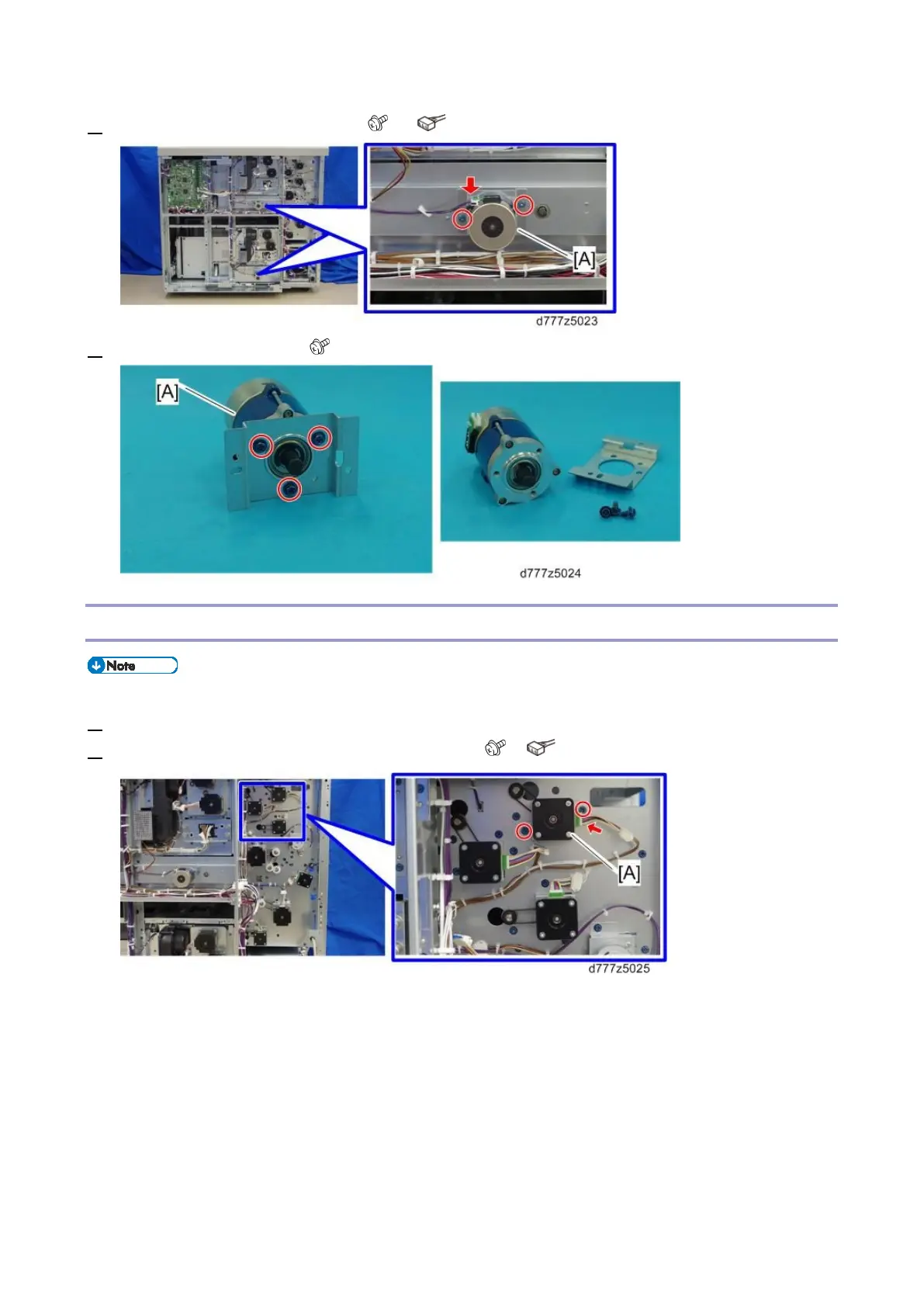

2. Remove the lift motor bracket [A] ( x2, x1)
3. Remove the lift motor [A] ( x3)
Bypass Transport Motor 2
 Bypass transport motor 2 is installed when the optional bypass unit is installed.
1. Remove the rear right and left covers (Rear Right Cover, Rear Left Cover).
2. Remove the bypass transport motor 2 bracket [A] ( x2, x1)
