Ricoh RT5120 - Tray 2 Transport Sensor

1.Replacement and Adjustment
82

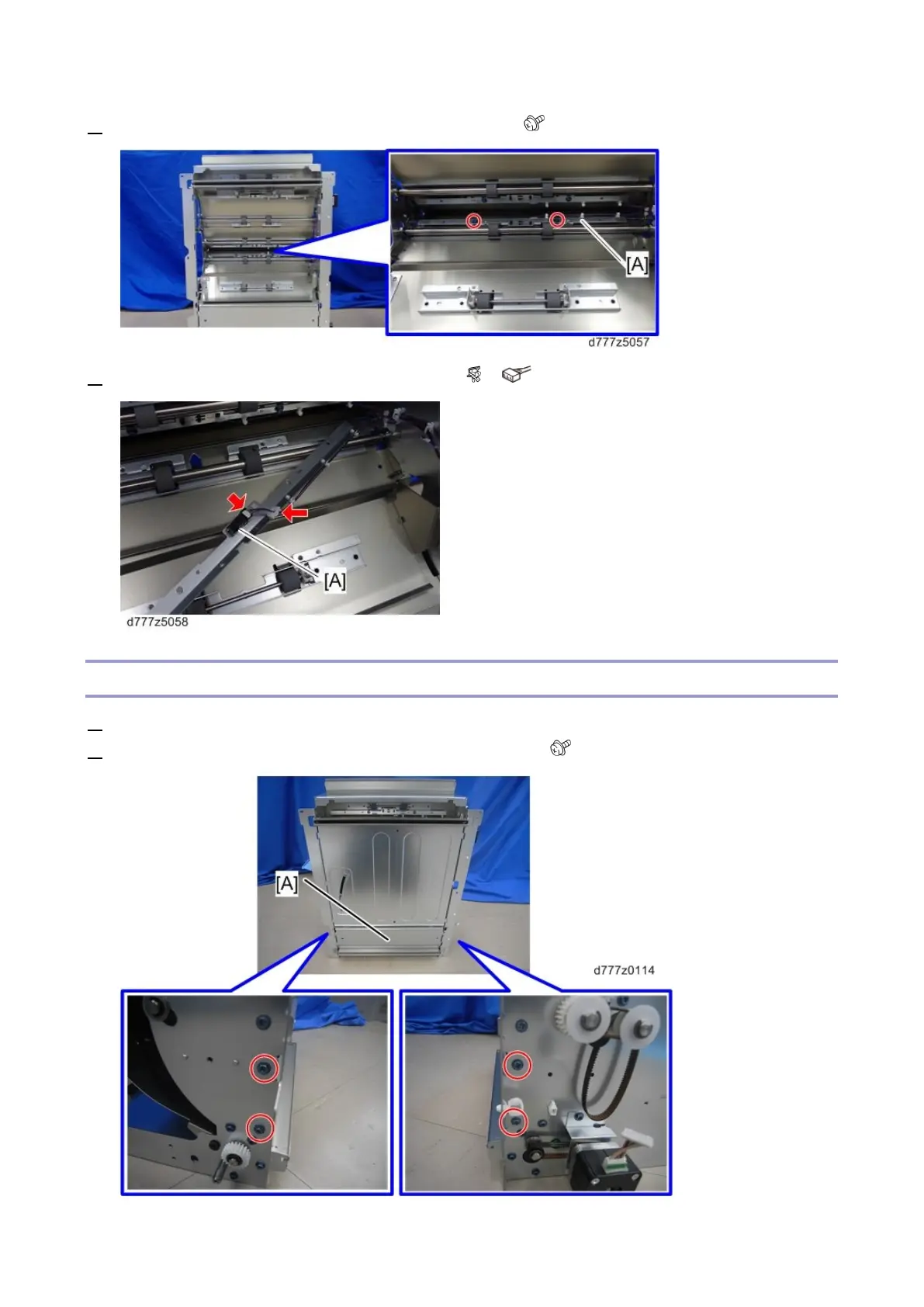

3. Remove the tray 2 vertical transport sensor bracket [A] ( x2)
4. Remove the tray 2 vertical transport sensor [A] ( x1, x1)
Tray 2 Transport Sensor
1. Remove the vertical feed unit (Vertical Feed Unit)
2. Remove the lower cover from the vertical transport unit [A] ( x4).
