Ricoh RT5120 - Tray 1 Vertical Transport Exit Contact Motor

1.Replacement and Adjustment
93

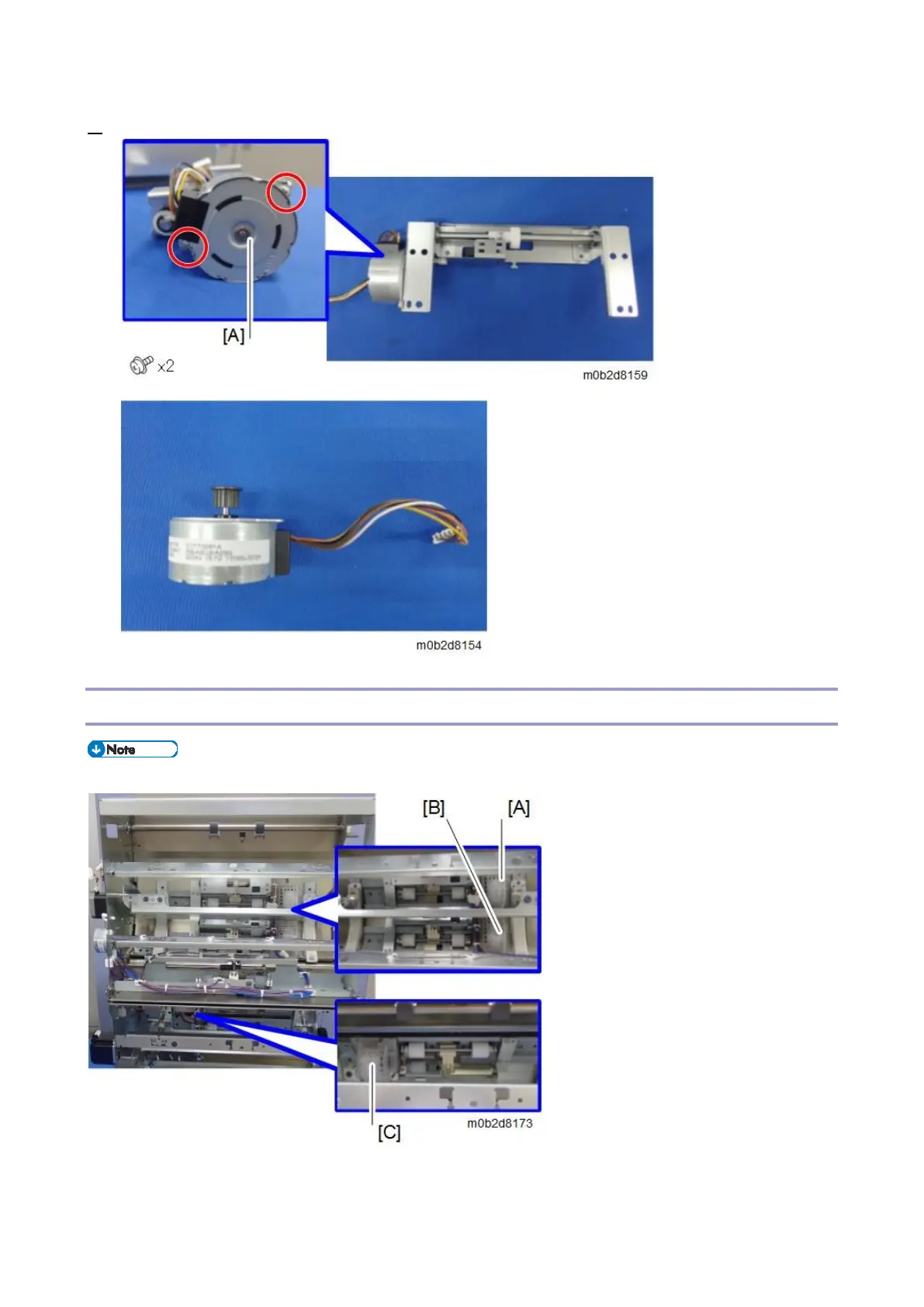

4. Remove the tray 2 vertical transport exit contact motor [A].
Tray 1 Vertical Transport Exit Contact Motor
The position of the contact motors on the left side of the vertical transport unit is shown below.
[A]: Tray 1 Vertical Transport Contact Motor
[B]: Tray 1 Vertical Transport Exit Contact Motor
