1.Replacement and Adjustment
36

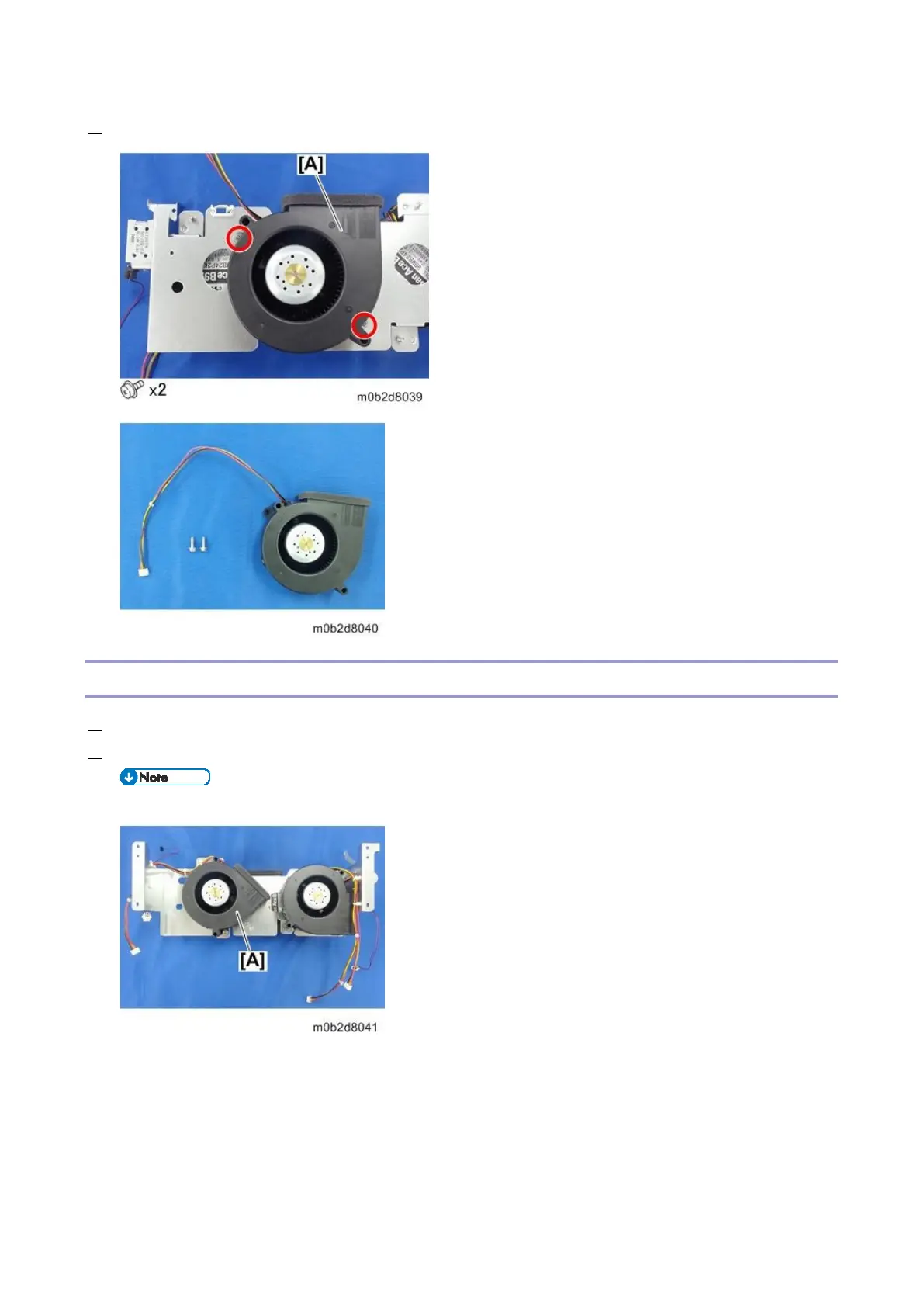

3. Remove the screws and the float fan [A].
Separation Fan
1. Remove the float/separation/return fan duct (Float/Separation/Return Fan Duct)
2. Remove the float/separation/return fan bracket (Float/Separation/Return Fan Bracket)
The position of the separation fan [A]
