Ricoh RT5120 - Paper Size Sensors

1.Replacement and Adjustment
58
Paper Size Sensors

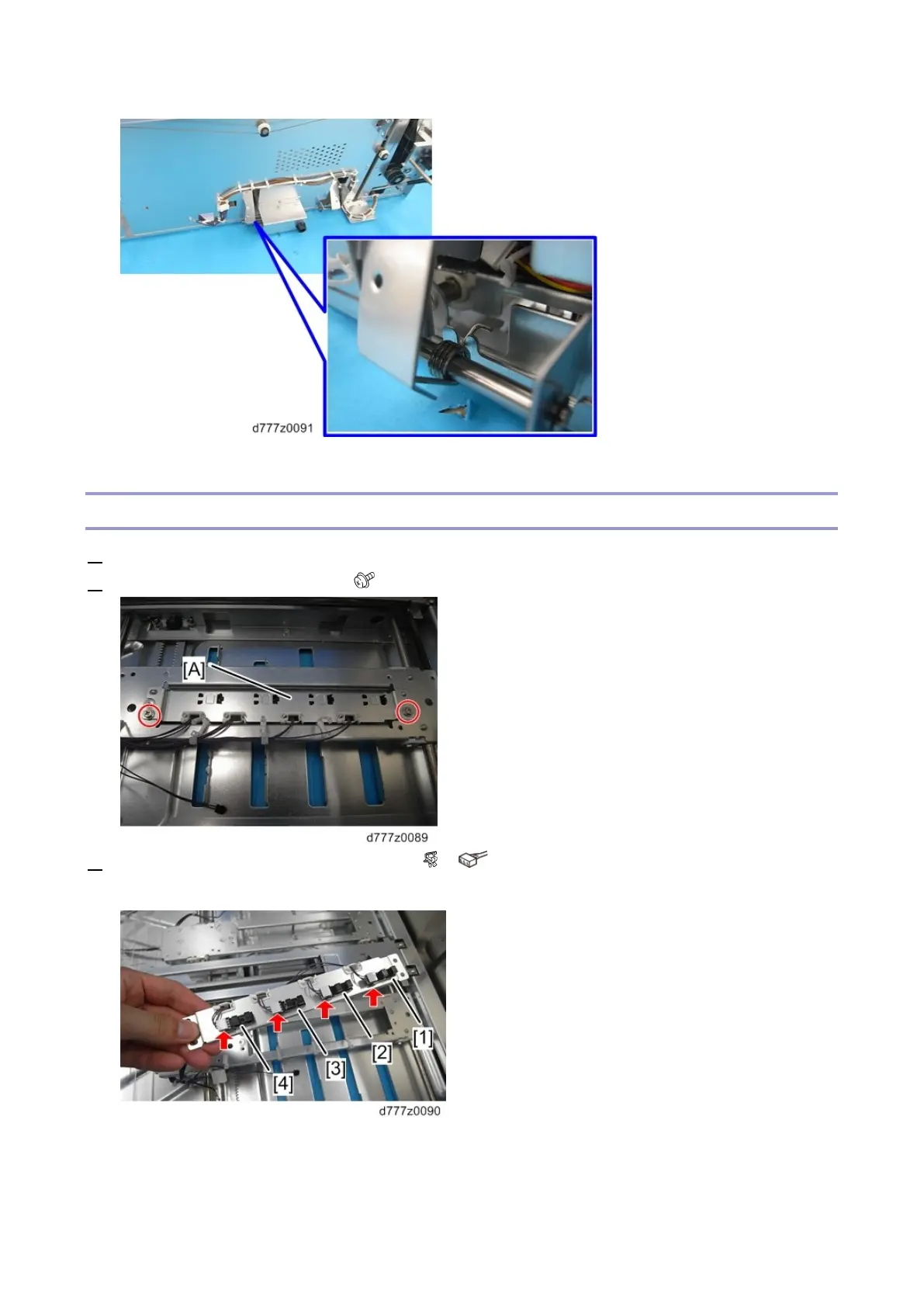

1. Remove the side fence (rear) (Side Fences (Front, Rear))
2. Remove the sensor bracket [A] ( x2)
3. Remove the paper size sensors [1] to [4] ( x4, x4). The sensors are located in order 1 to 4 on
the paper feed side.
