1.Replacement and Adjustment
57

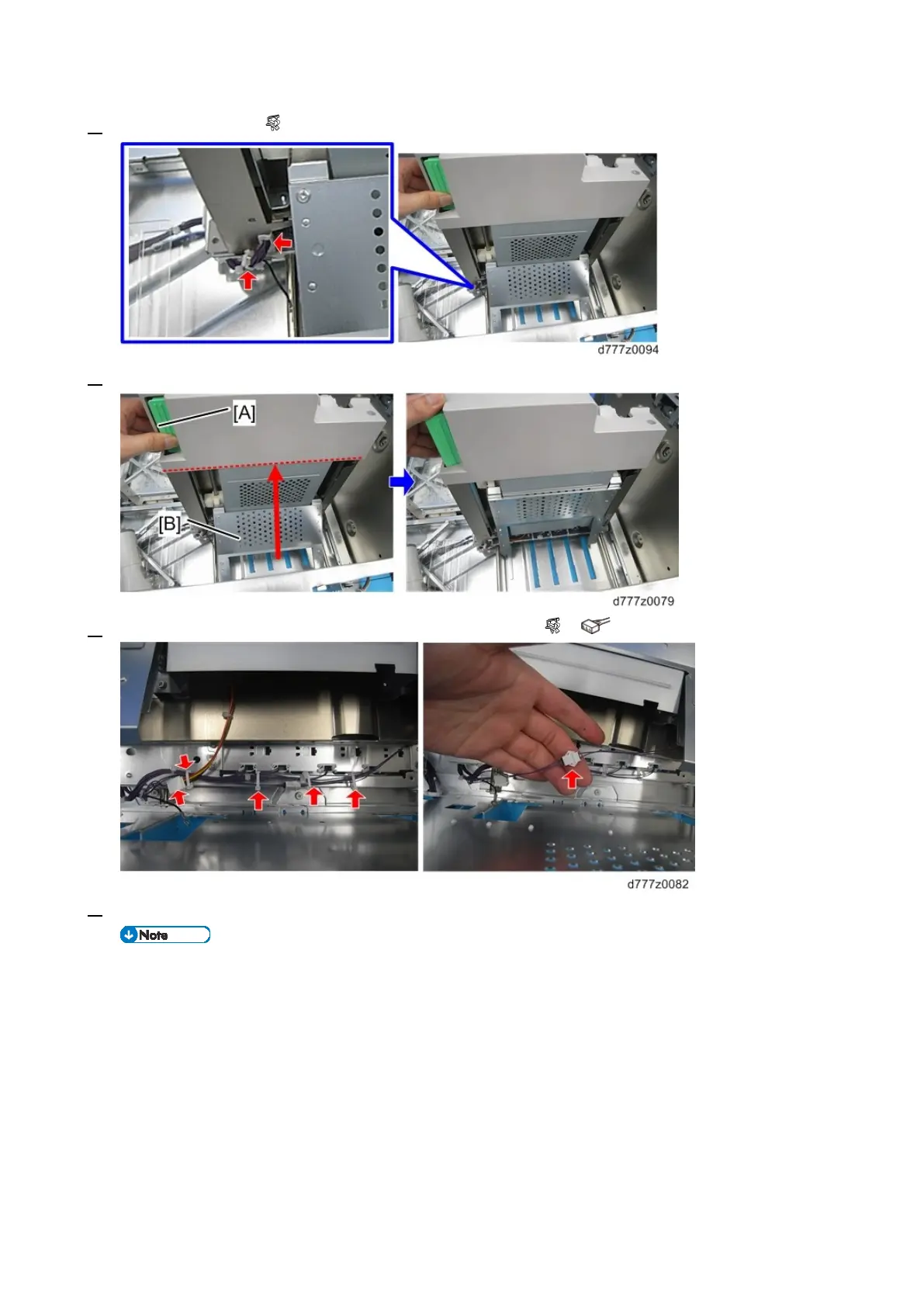

5. Release the clamp ( x2).
6. Hold down the lock lever [A] and raise the side fence [B].
7. Remove the connectors from the bottom of the side fence ( x4, x2).
8. Lift the side fence (rear) and remove it.
Install the spring on the end face shaft as shown in the photo.
