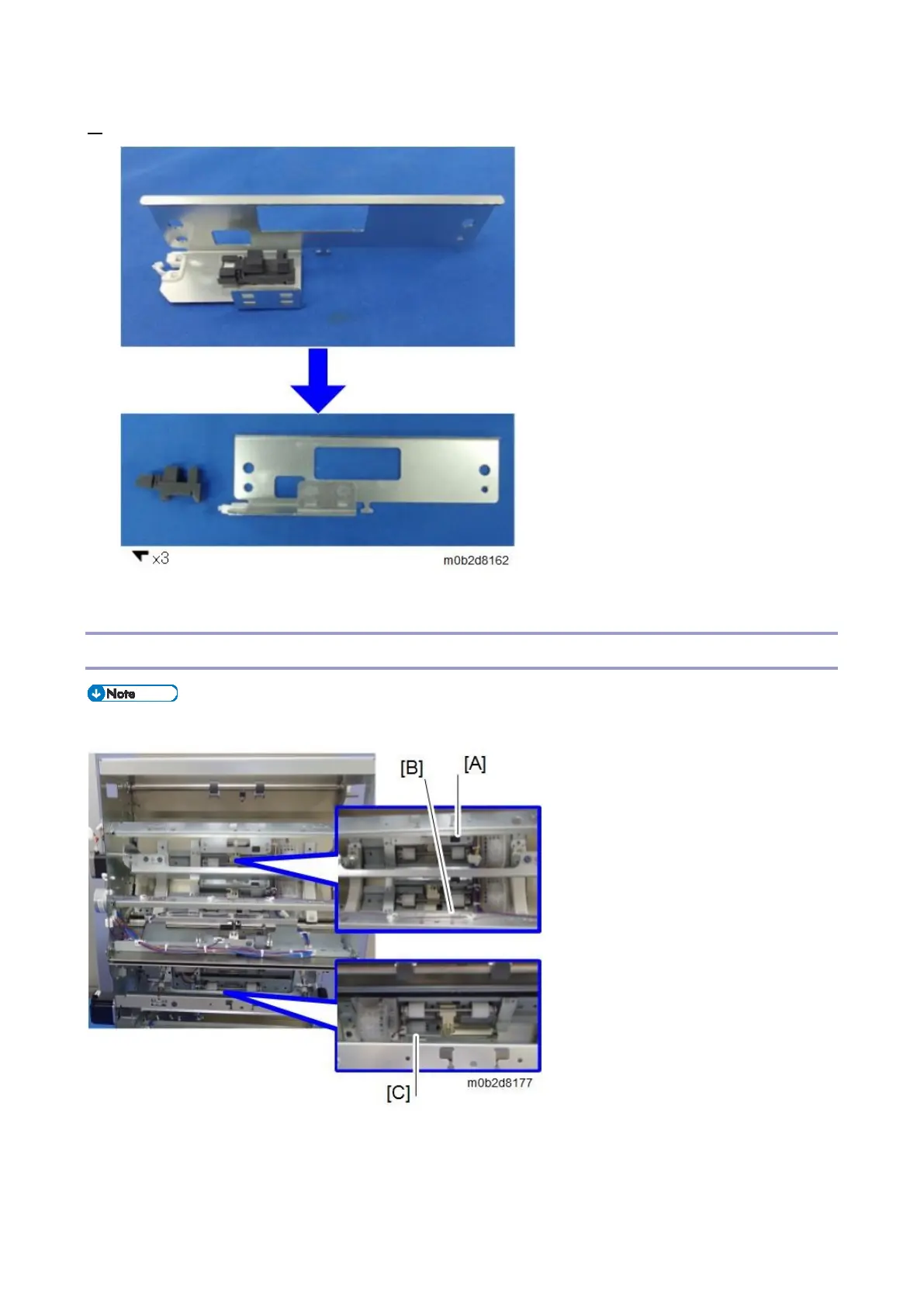

4. Remove the tray 2 vertical transport exit contact sensor from the sensor bracket.
Tray 1 Vertical Transport Exit Contact Sensor
The position of the contact sensors on the left side of the vertical transport unit is shown below.
[A]: Tray 1 Vertical Transport Contact Sensor
[B]: Tray 1 Vertical Transport Exit Contact Sensor
[C]: Tray 2 Vertical Transport Exit Contact Sensor
