Ricoh RT5120 - Side Fences and Sensors

1.Replacement and Adjustment
45

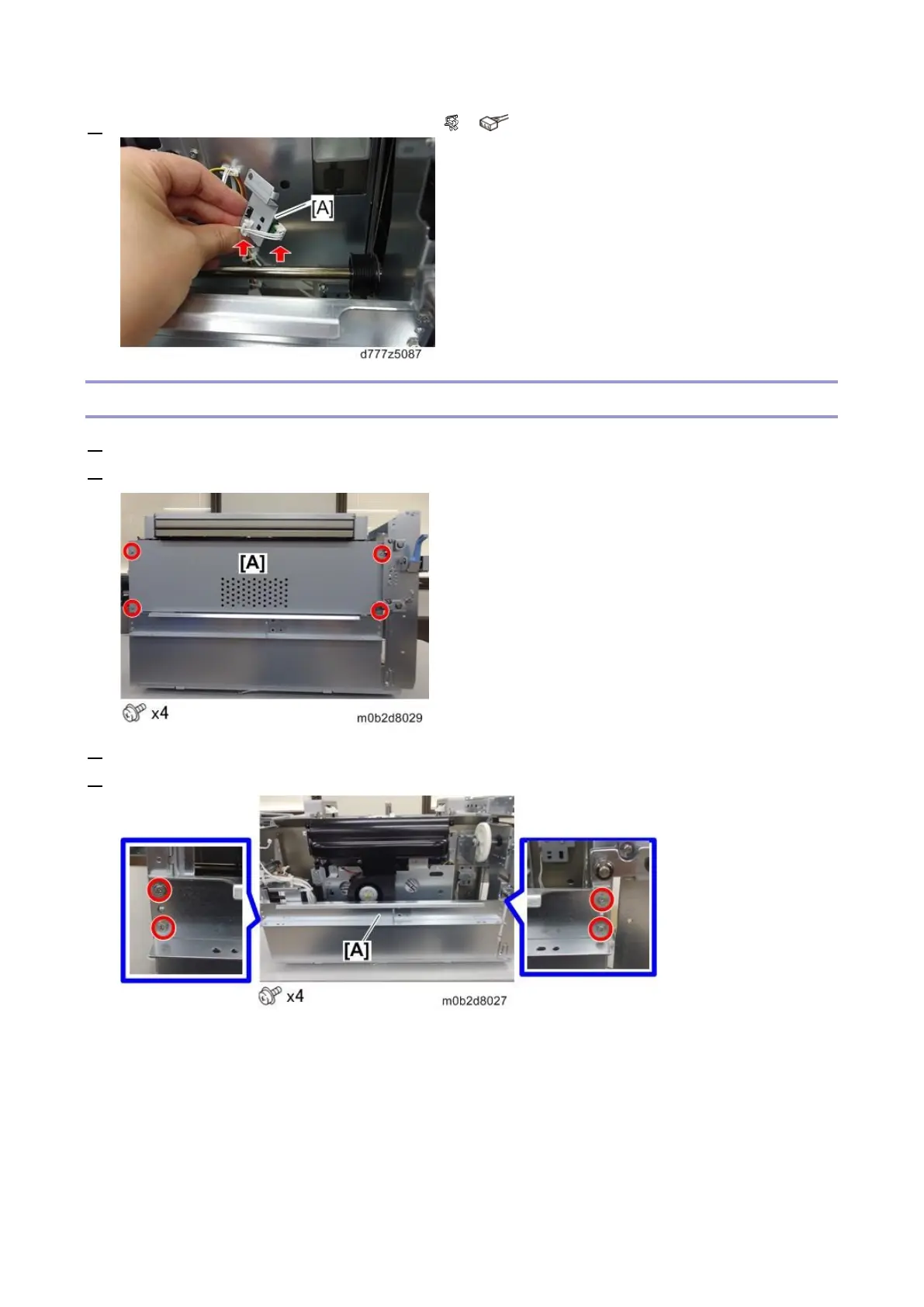

4. Remove the paper height middle sensor [A] ( x1, x1)
Paper Lower Limit Sensor
1. Remove the paper tray (Paper Tray)
2. Remove the tray left upper cover [A].
3. Remove the transport roller unit (Transport Roller Unit)
4. Remove the left rail plate [A].
