Ricoh RT5120 - Tray 1 Transport Sensor

1.Replacement and Adjustment
78

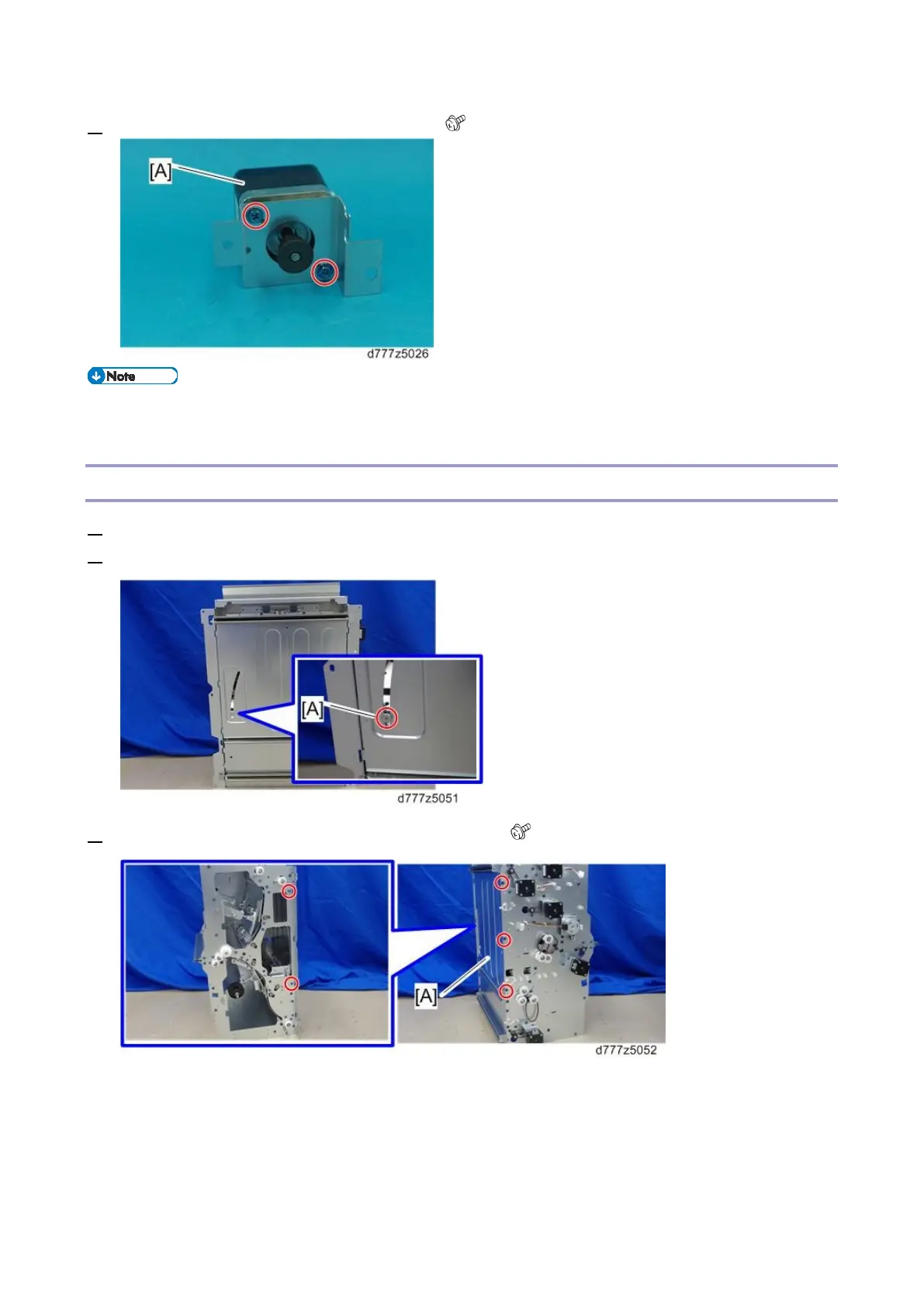

3. Remove tray 1 vertical transport motor 2 [A] ( x2)
 When installing the motor, refer to re-installation for bypass transport motor 2 (Bypass
Transport Motor 2).
Tray 1 Transport Sensor
1. Remove the vertical feed unit (Vertical Feed Unit)
2. Remove the shoulder screw [A]
3. Remove the right cover [A] from the vertical feed unit ( x5).
