Ricoh RT5120 - Tray 2 Vertical Transport Sensor

1.Replacement and Adjustment
81
screw holes [B].

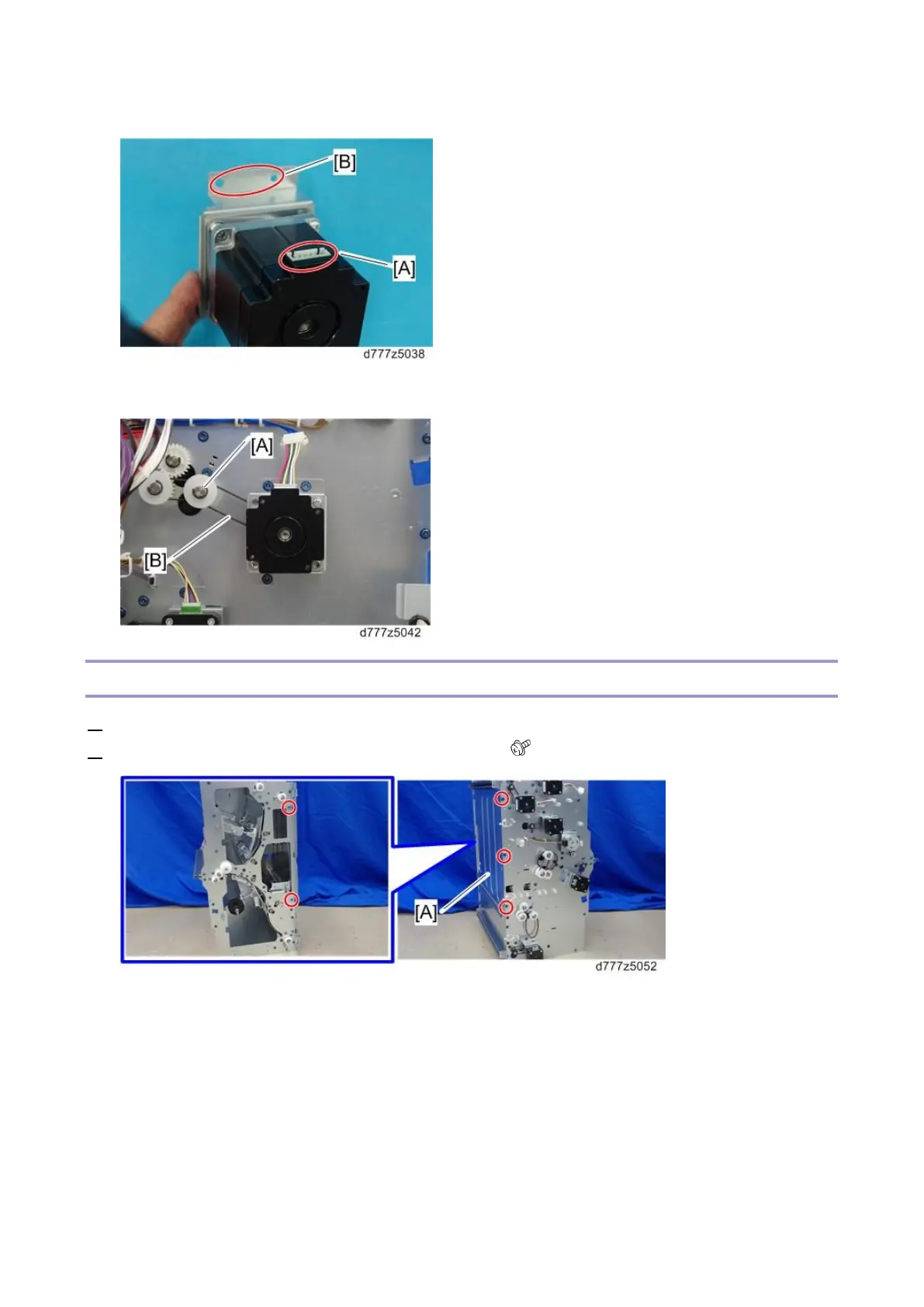

2. When attaching the motor bracket, turn the roller [A] to make sure that the timing belt [B] is
correctly installed.
Tray 2 Vertical Transport Sensor
1. Remove the vertical feed unit (Vertical Feed Unit)
2. Remove the right cover [A] from the vertical feed unit ( x5).
