Ricoh RT5120 - Tray 1 Pickup Belt Motor

1.Replacement and Adjustment
62
Tray 1 Pickup Belt Motor
1. Remove the rear right and left covers (Rear Right Cover,Rear Left Cover).

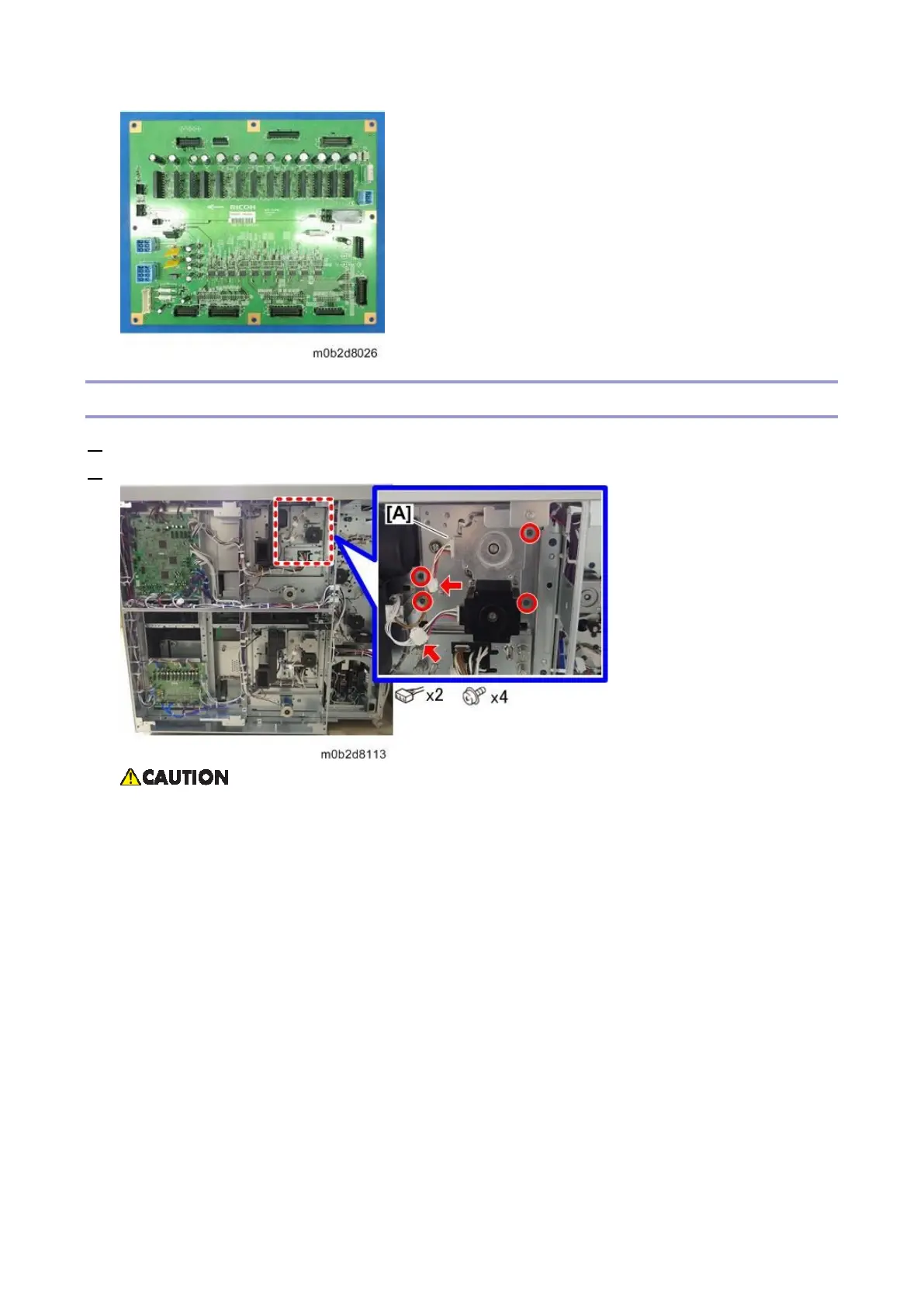

2. Remove the tray 1 grip motor bracket [A].
The number of the socket pins of the tray 1 pickup belt motor and these of the tray 1 grip motor is
the same. so it is possible that the harnesses are wrongly connected. Check the harness color so
as not to make a wrong connection. If a wrong connection have been made, paper jam will occur.
[A]: Tray 1 pickup belt motor harness (Brown)
[B]: Tray 1 grip motor harness (White)
