1.Replacement and Adjustment
17

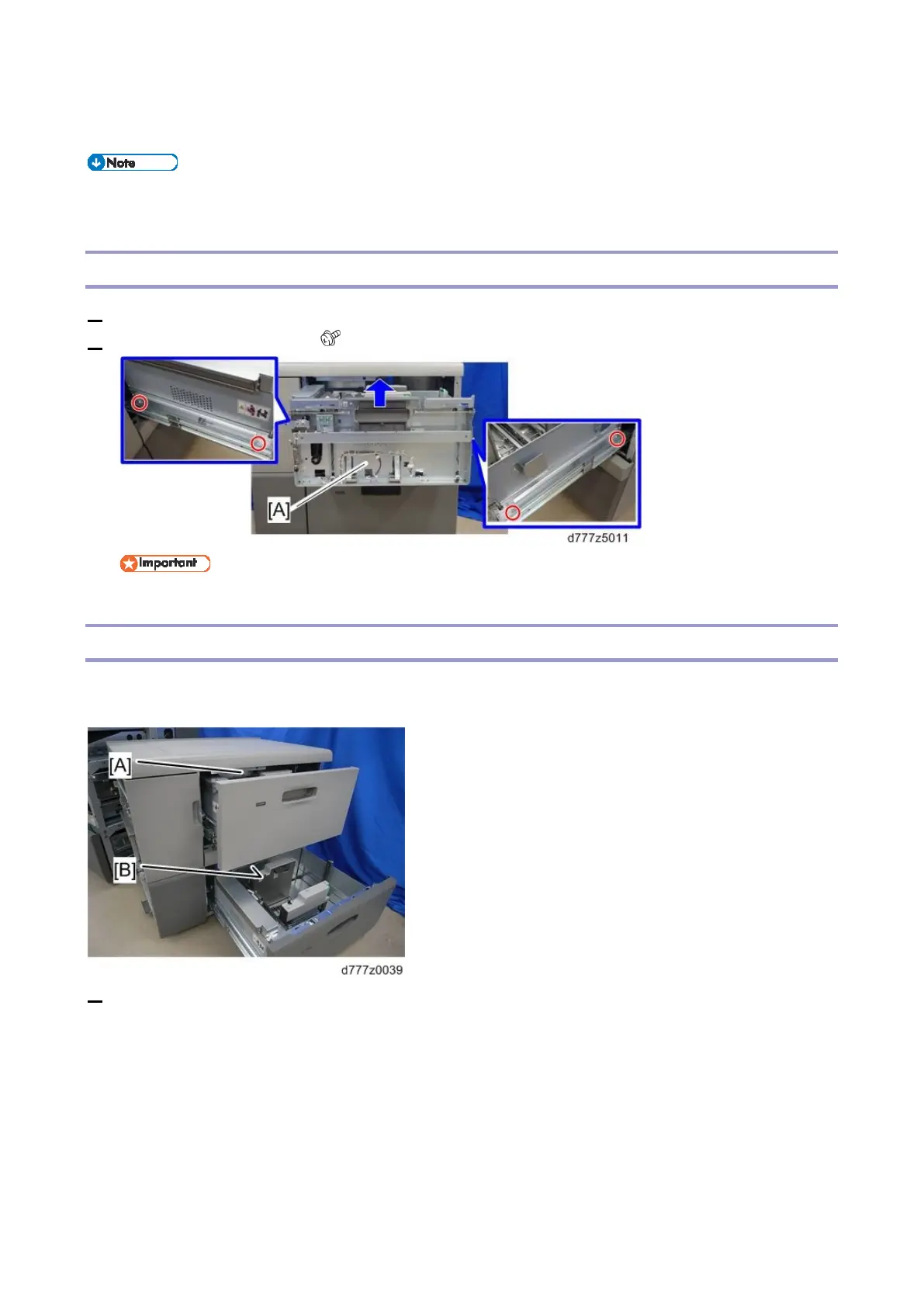

Paper Feed Unit (Trays 1, 2)
Parts in paper trays 1 and 2 can be removed using the same procedure. The following are the
procedures for replacing the parts in tray 1.
Paper Tray
1. Remove the tray front cover (Tray Front Cover (Tray 1, 2))
2. Remove the paper tray [A] ( x4)
The tray weighs about 30 kg. It is heavy and requires careful handling by two persons.
Paper Feed Belt Unit
[A]: Tray 1 paper feed belt unit
[B]: Tray 2 paper feed belt unit
1. Open the paper tray.
