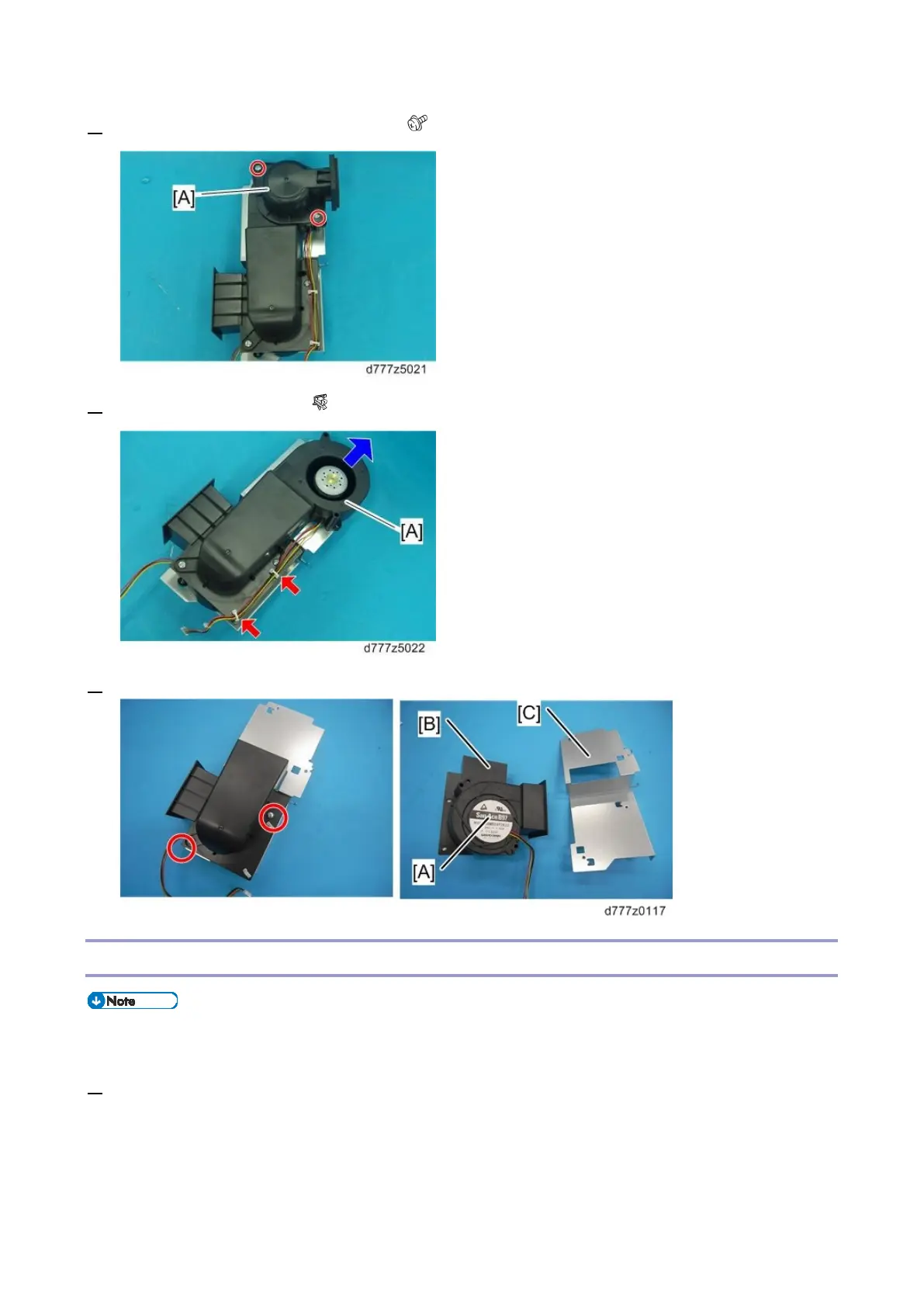

3. Remove the upper suction fan duct [A] ( x2)
4. Remove suction fan 1 [A] ( x2)
5. Separate suction fan 2 [A], the suction fan duct [B] and the bracket [C].
LCIT Lift Motor (Tray 1, 2)
 The LCIT lift motor can be removed using the same procedure for each tray. The following is
the procedure for replacing the motor in tray 1.
1. Remove the rear right and left covers (Rear Right Cover, Rear Left Cover).
