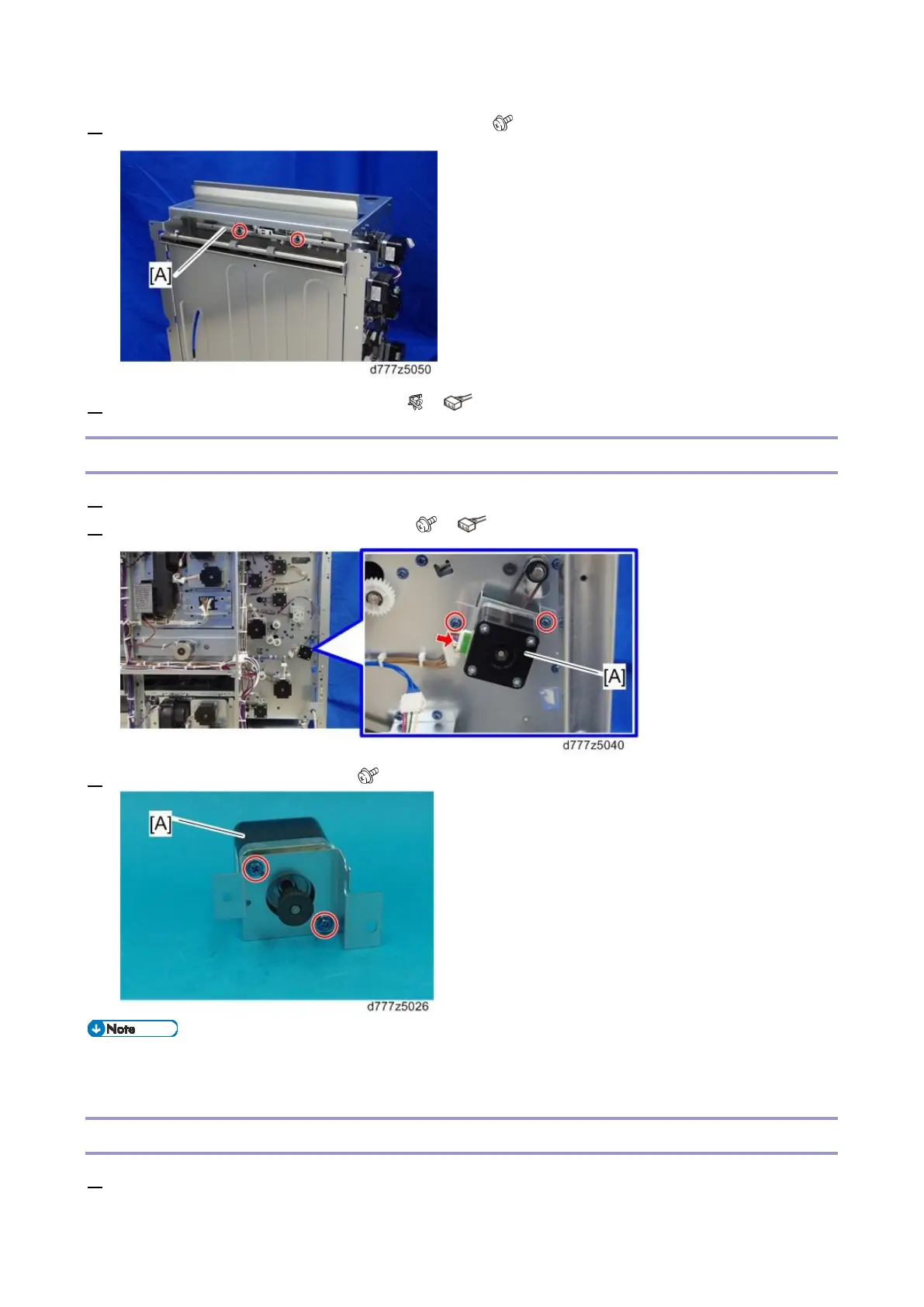

1.Replacement and Adjustment
85
2. Remove the bypass transport sensor 2 bracket [A] ( x2)
3. Remove bypass transport sensor 2 [A] ( x1, x1)
LCIT Exit Motor
1. Remove the rear right and left covers (Rear Right Cover, Rear Left Cover).
2. Remove the LCIT exit motor bracket [A] ( x2, x1)
3. Remove the LCIT exit motor [A] ( x2)
When installing the motor, refer to re-installation for bypass transport motor 2 (Bypass
Transport Motor 2).
LCIT Exit Roller Contact Motor
1. Remove the rear right and left covers (Rear Right Cover, Rear Left Cover).
