1.Replacement and Adjustment
21
Paper Feed Belt

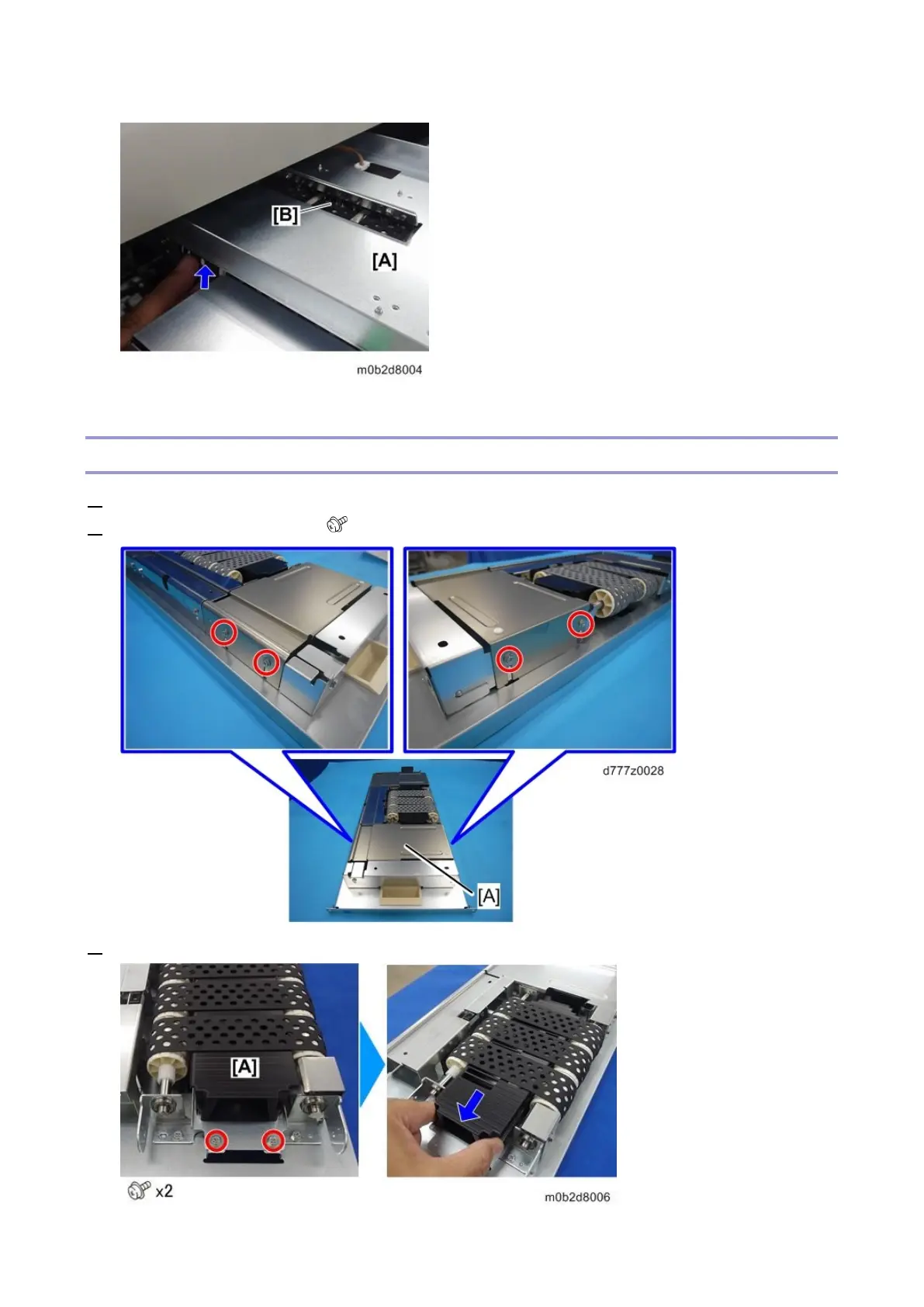

1. Remove the paper feed belt unit (Paper Feed Belt Unit).
2. Remove the guide plate [A] ( x4)
3. Remove the screws and pull out the chamber [A].
