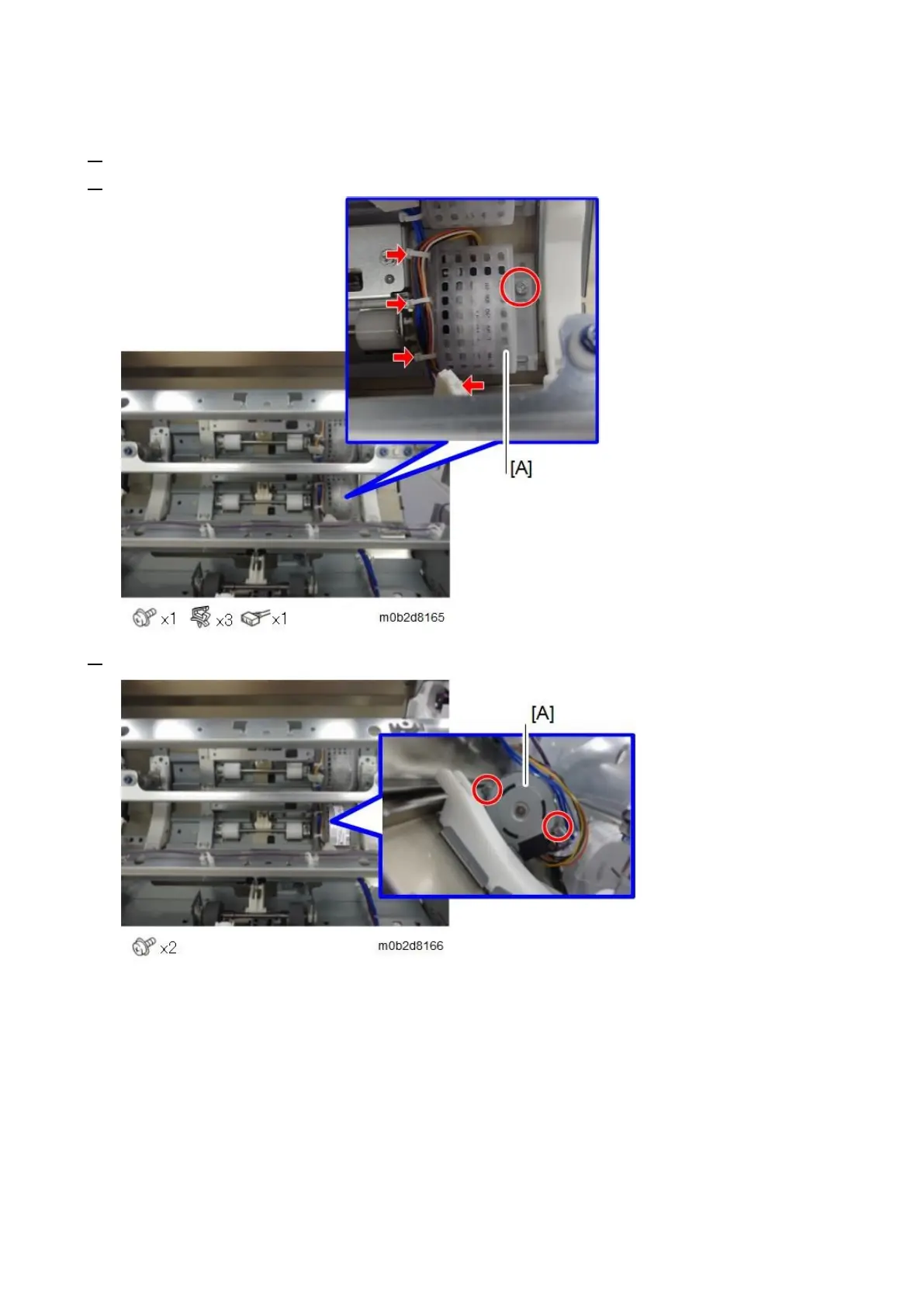

[C]: Tray 2 Vertical Transport Exit Contact Motor
1. Remove the vertical feed unit (Vertical Feed Unit)
2. Release the clamps and connector, and remove the motor cover [A].
3. Remove the tray 1 vertical transport exit roller contact motor [A].
