Ricoh RT5120 - Page 108

1.Replacement and Adjustment
104

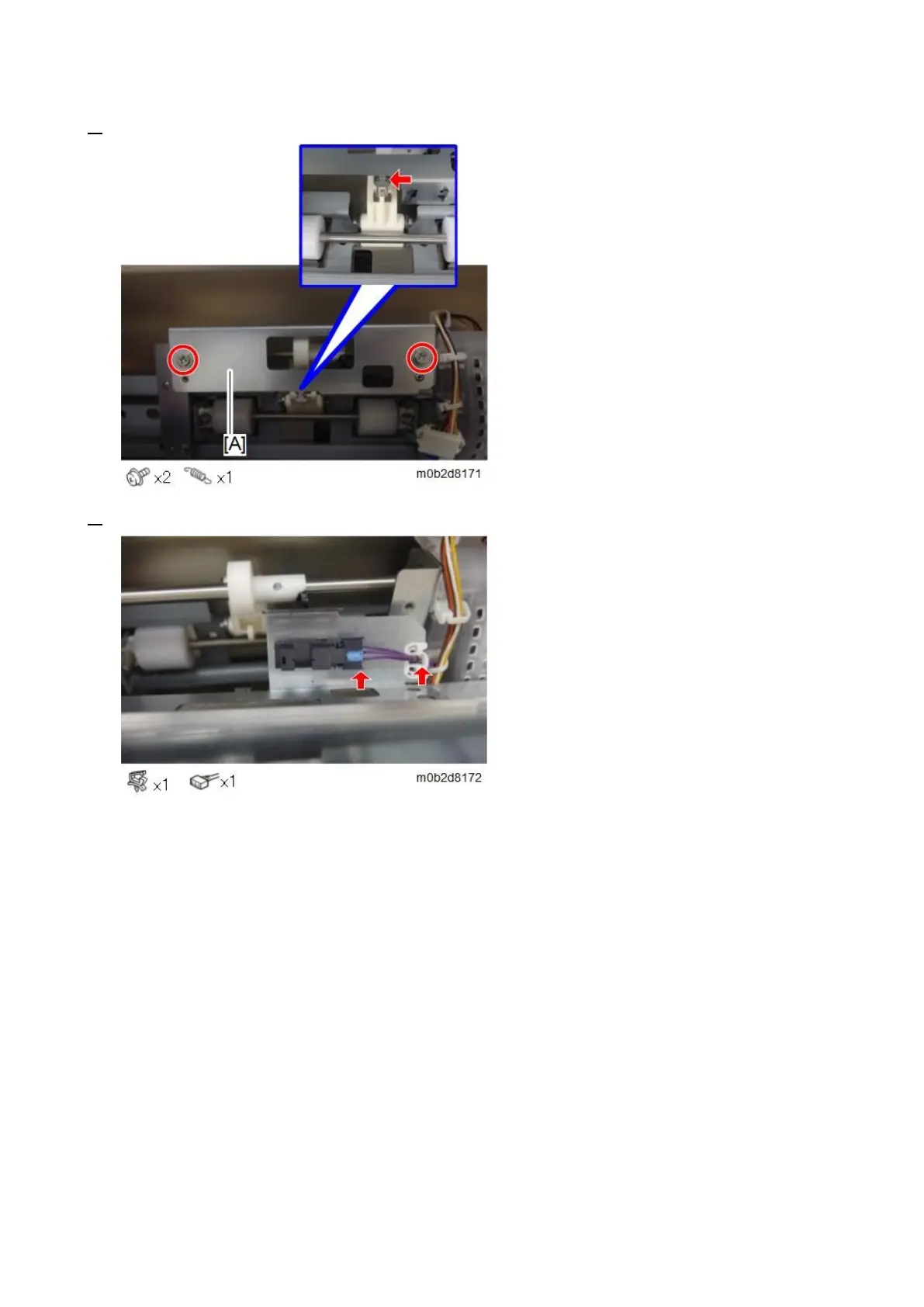

2. Remove the spring and the sensor bracket [A].
3. Turn over the sensor bracket, release the edge saddle, and disconnect the connector of the sensor.
