Ricoh RT5120 - Page 126

2.Detailed Descriptions
122
No.
Name
No.
Name
1
Pickup Belt Motor
5
Suction Fan 2
2
Grip Motor
6
LCIT Lift Motor
3
Suction Fan 1
7
Transport Motor Cooling Fan
4
Tray Upper Limit Sensor

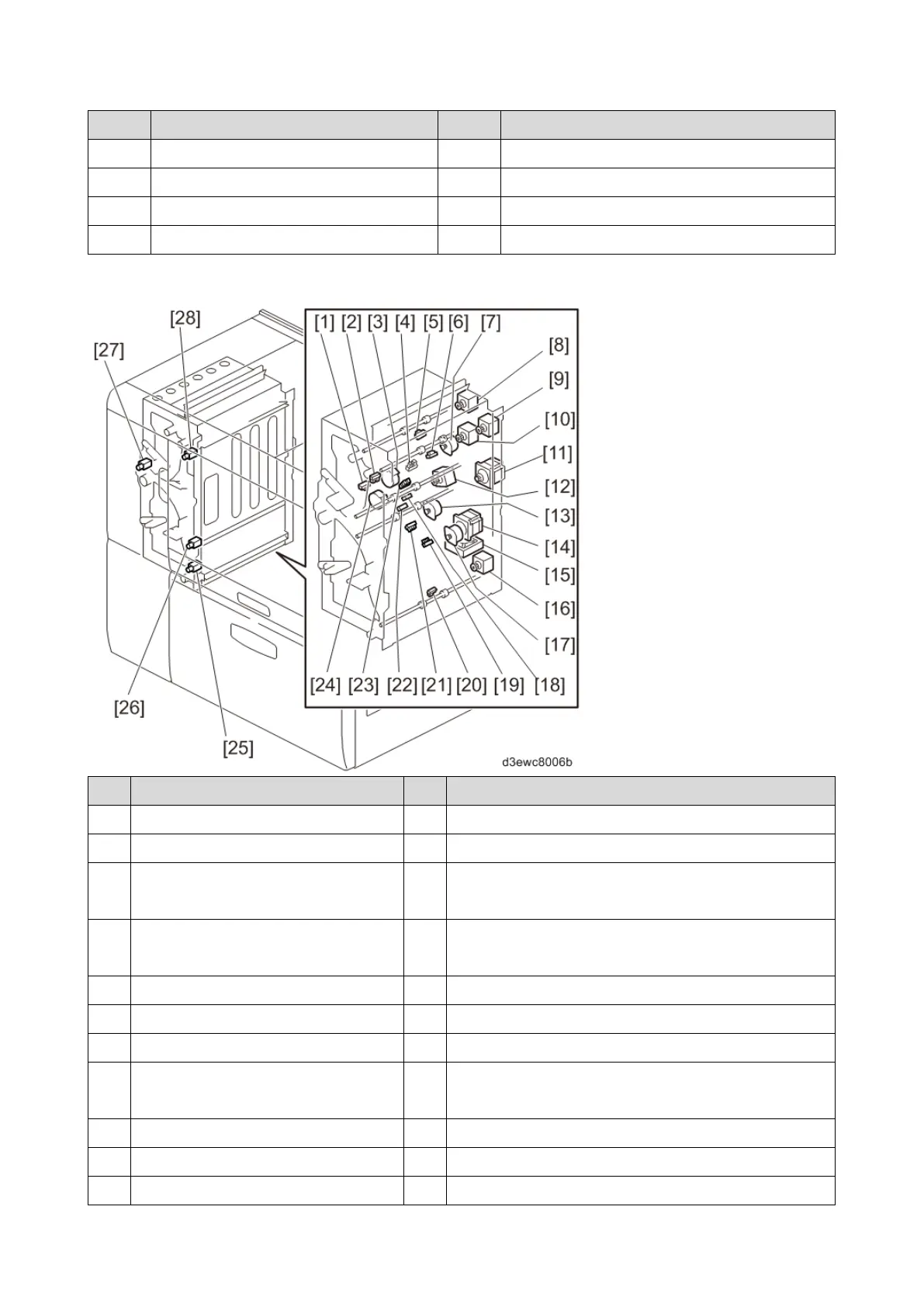

Paper Transport
No.
Name
No.
Name
1
LCIT Exit Sensor
15
Vertical Transport Unit Cooling Fan
2
LCIT Exit Roller Contact Sensor
16
Tray 2 Vertical Transport Motor 1
3
Tray 1 Vertical Transport Contact
Motor
17
Vertical Transport Entrance Contact Motor
4
Tray 1 Vertical Transport Contact
Sensor
18
Tray 1 Vertical Transport Sensor
5
Bypass Vertical Transport Sensor
19
Vertical Transport Entrance Contact Motor
6
Tray 1 Transport Sensor
20
Tray 2 Vertical Transport Sensor
7
LCIT Exit Roller Contact Motor
21
Tray 2 Vertical Transport Exit Contact Sensor
8
Bypass Vertical Transport Motor
(*1)
22
Tray 2 Transport Sensor
9
Tray 1 Vertical Transport Motor 1
23
Tray 1 Vertical Transport Exit Contact Sensor
10
Tray 1 Vertical Transport Motor 2
24
Tray 1 Vertical Transport Exit Contact Motor
11
Vertical Transport Exit Motor
25
Tray 2 Vertical Transport Lever LED
