Ricoh RT5120 - Page 129

2.Detailed Descriptions
125

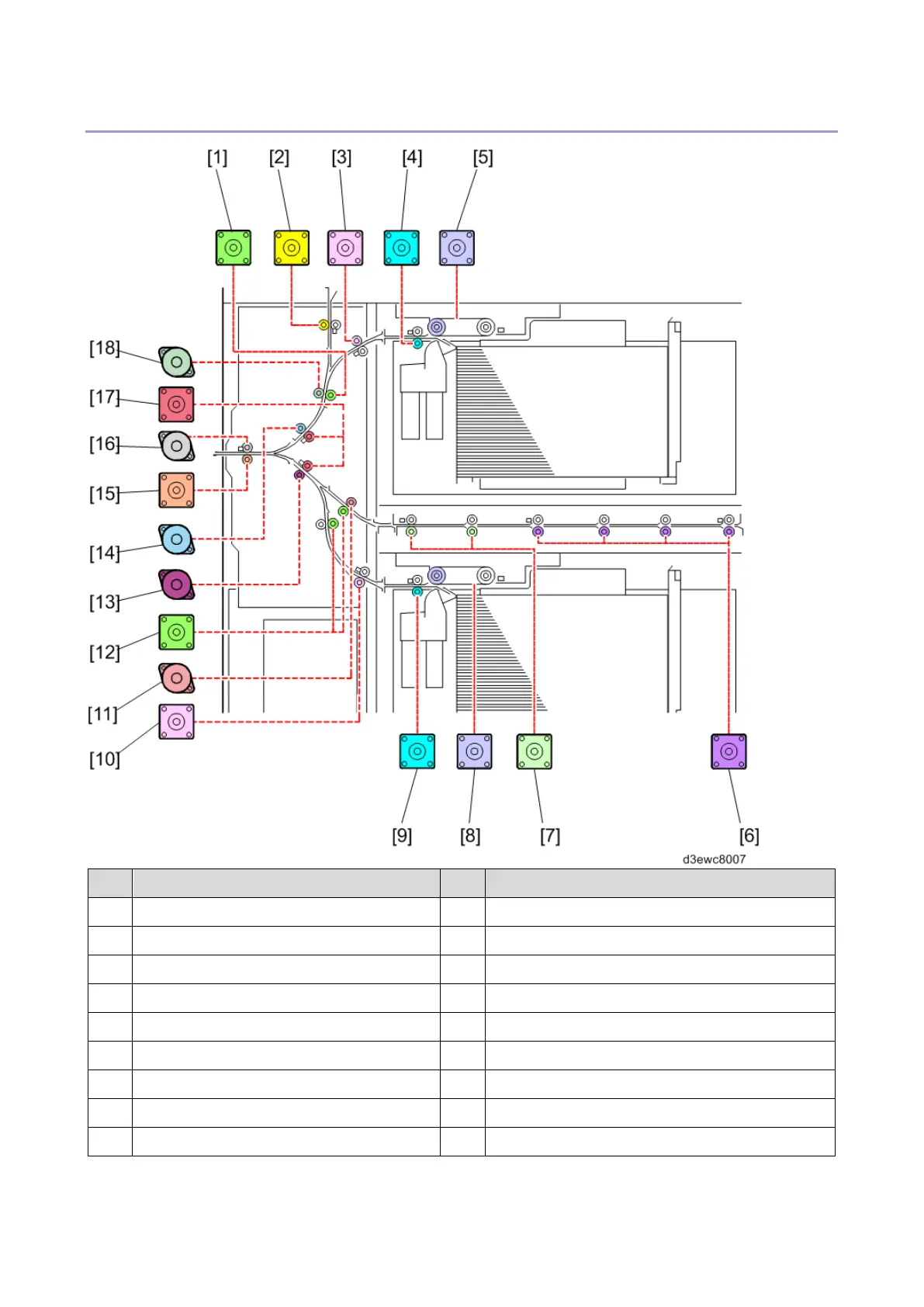

Drive Layout
No.
Name
No.
Name
1
Tray 1 Vertical Transport Motor 2
10
Tray 2 Vertical Transport Motor 1
2
Bypass Transport Motor *
1
11
Vertical Transport Entrance Contact Motor
3
Tray 1 Vertical Transport Motor 1
12
Tray 2 Vertical Transport Motor 2
4
Tray 1 Grip Motor
13
Tray 2 Vertical Transport Exit Contact Motor
5
Tray 1 Pickup Belt Motor
14
Tray 1 Vertical Transport Exit Contact Motor
6
Horizontal Transport Entrance Motor*
2
15
LCIT Exit Motor
7
Horizontal Transport Exit Motor *
2
16
LCIT Exit Roller Contact Motor
8
Tray 2 Pickup Belt Motor
17
Vertical Transport Exit Motor
9
Tray 2 Grip Motor
18
Tray 1 Vertical Transport Contact Motor
*1 This motor is provided with the bypass tray attachment kit. When attaching the Multi Bypass Tray
BY5020 to this machine, this motor will be installed..
