1.Replacement and Adjustment
9

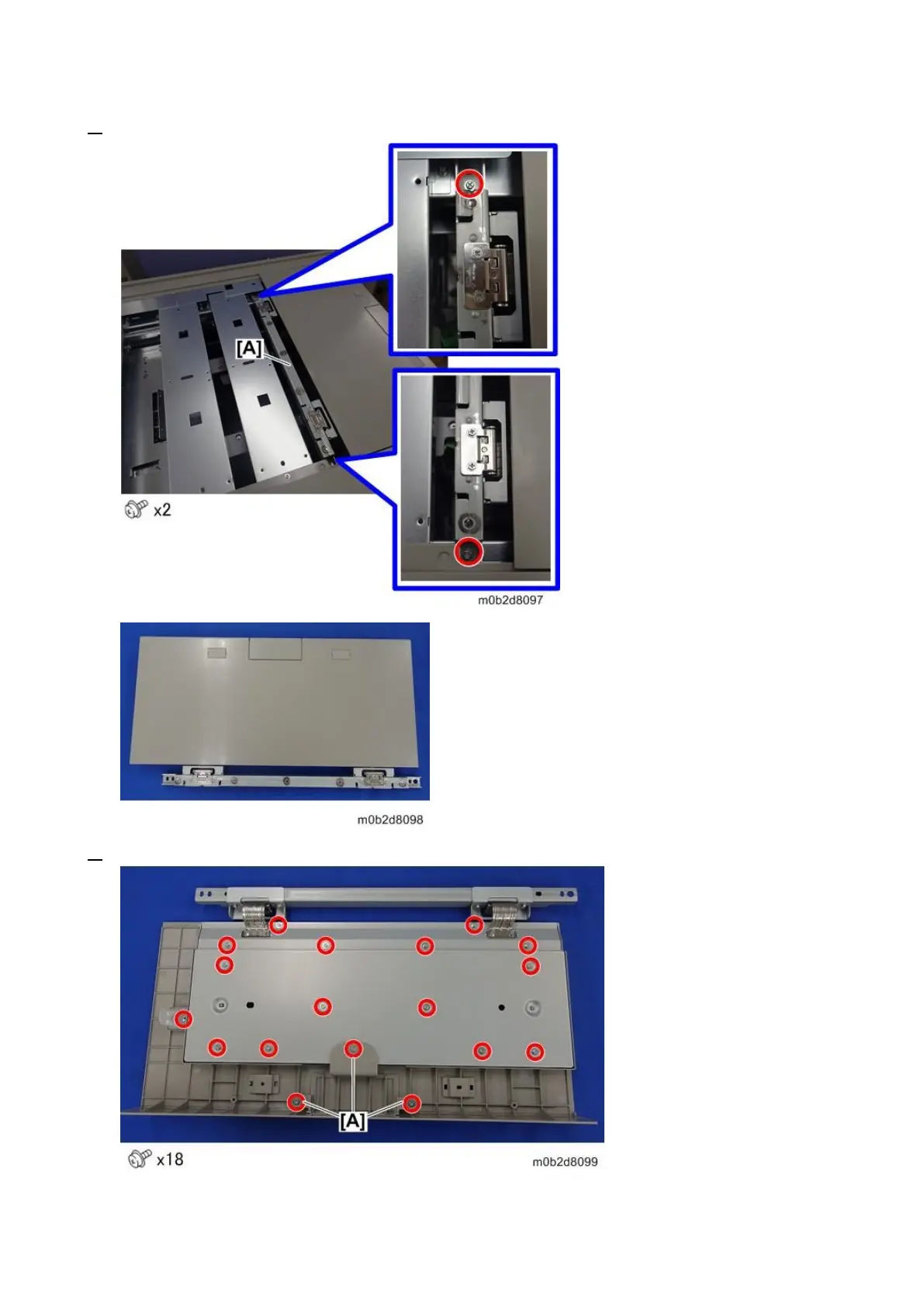

2. Remove the screws on the stay [A], and then remove the stay with the top cover.
3. Remove the plate from the top cover.
