2.Detailed Descriptions
138

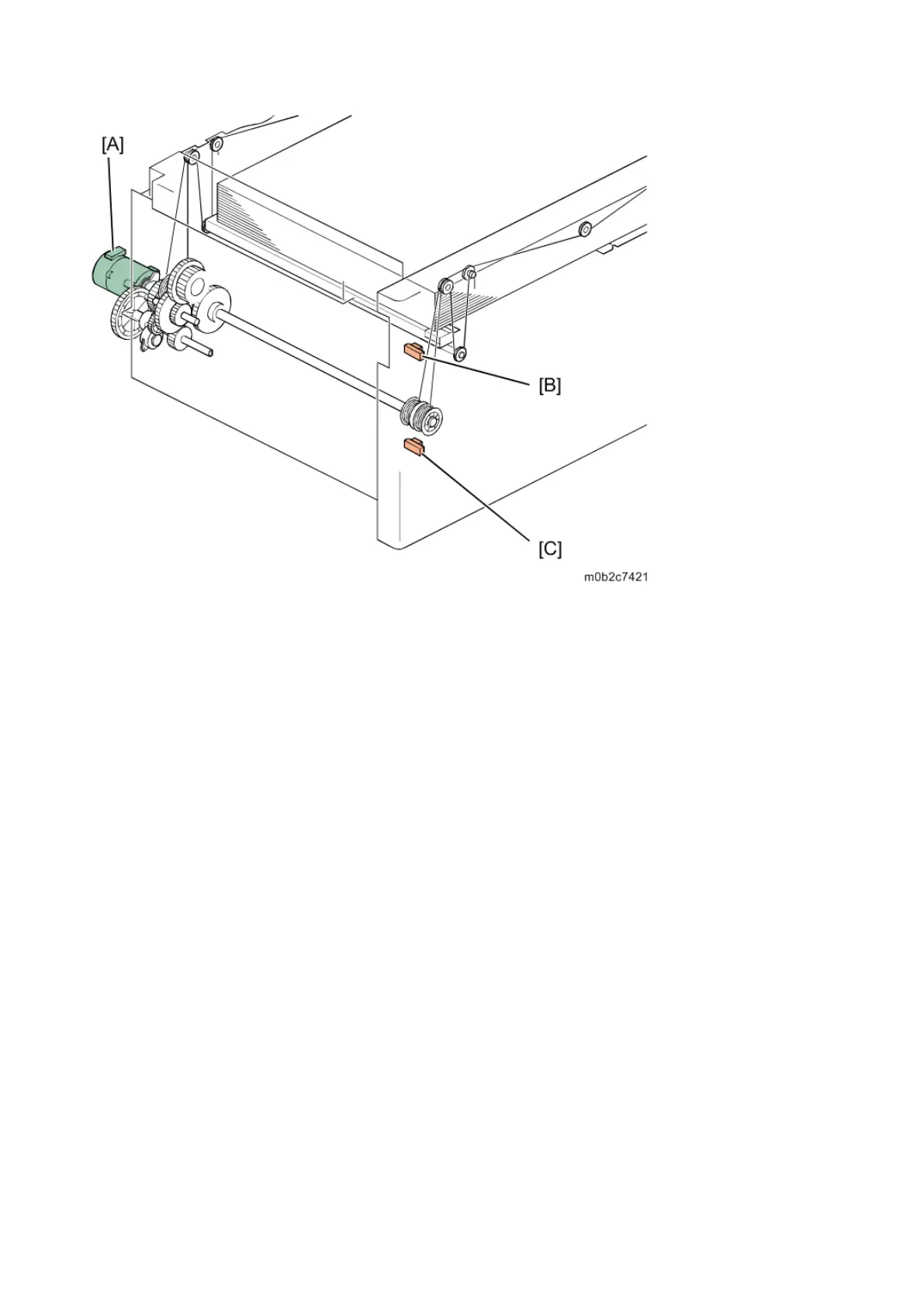

Relationship between Sensor State and Paper Remaining
When the upper limit is detected and the lower limit sensor detects, the output pulses of the LCIT
lift motor are not counted and the remaining amount is determined as 100 %.
When the upper limit is detected and the paper height middle sensor detects, the output pulses of
the LCIT lift motor are not counted and the remaining amount is determined as 50 %.
When the bottom plate passes the lower limit sensor, the pulse count for the LCIT lift motor starts.
When the paper height middle sensor detects, the pulse count for the LCIT lift motor resets. Then,
when the bottom plate passes the lower limit sensor, the count starts.
When paper remaining is 5 % or less, it is determined as 5 % until the paper end.
When the paper height middle sensor detects, the remaining amount is determined as 50 %
regardless of the state of the lower limit sensor and the output pulses of the LCIT lift motor.
The pulse count is cleared when no tray is in the LCIT.
