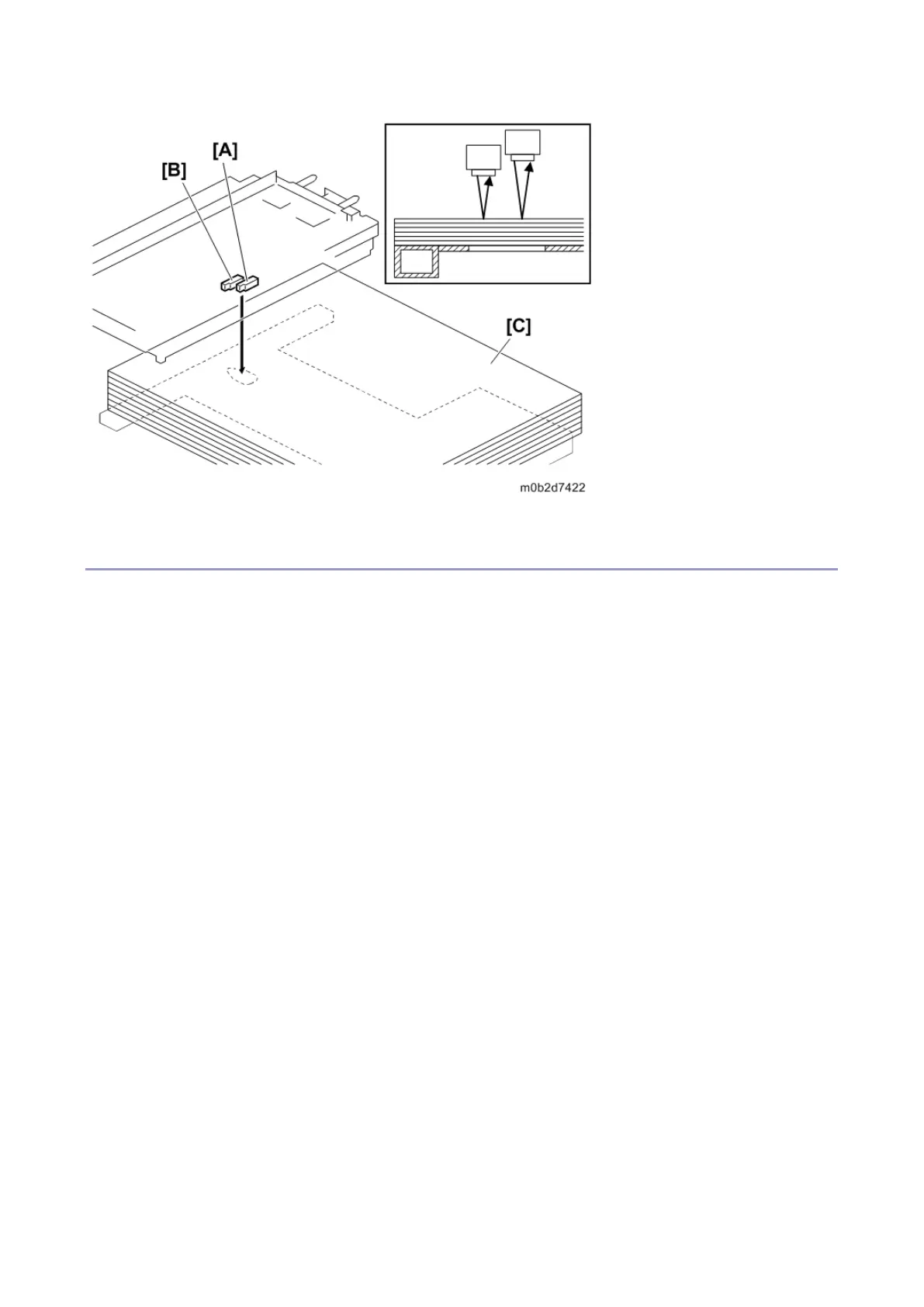

Exit Roller Contact Mechanism
This LCIT unit has a new roller contact mechanism (pair of four rollers contacts/separates) to release
rollers that grip the trailing edge of paper when the SWIFT unit corrects the position of the paper in the
main machine (Pro C9200/C9210 models only).
The long paper contact motors 1 to 4 ([A] - [D]) are for vertical transport (for three paths [1] [2] [3]). The
three paths are related to Multi Bypass Attachment Kit for Vacuum Feed LCIT Type S9 [1], Multi Bypass
Banner Sheet Tray Type S9 [2], Bridge A3 LCIT [3] respectively.
Additionally, the Tray 1 vertical transport sensor [E] and vertical transport entrance sensor [F] are newly
added to detect the transport of long paper.
When attached to Pro C7200/C7210 series models, this roller contact mechanism for long paper does
not function.
