1.Replacement and Adjustment
25

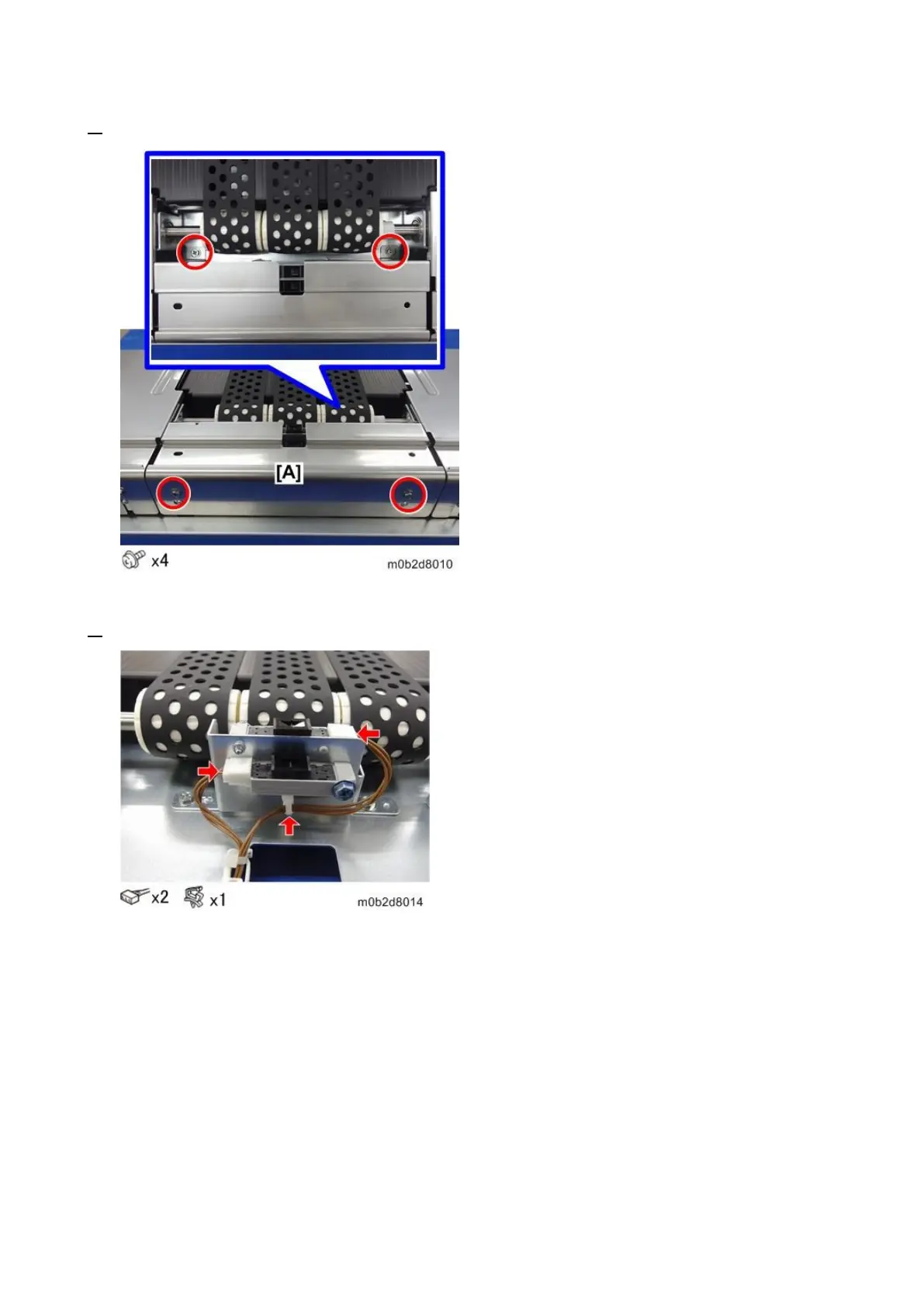

2. Remove the center guide plate [A].
3. Release the connectors and clamps of paper end sensors 1 and 2.
