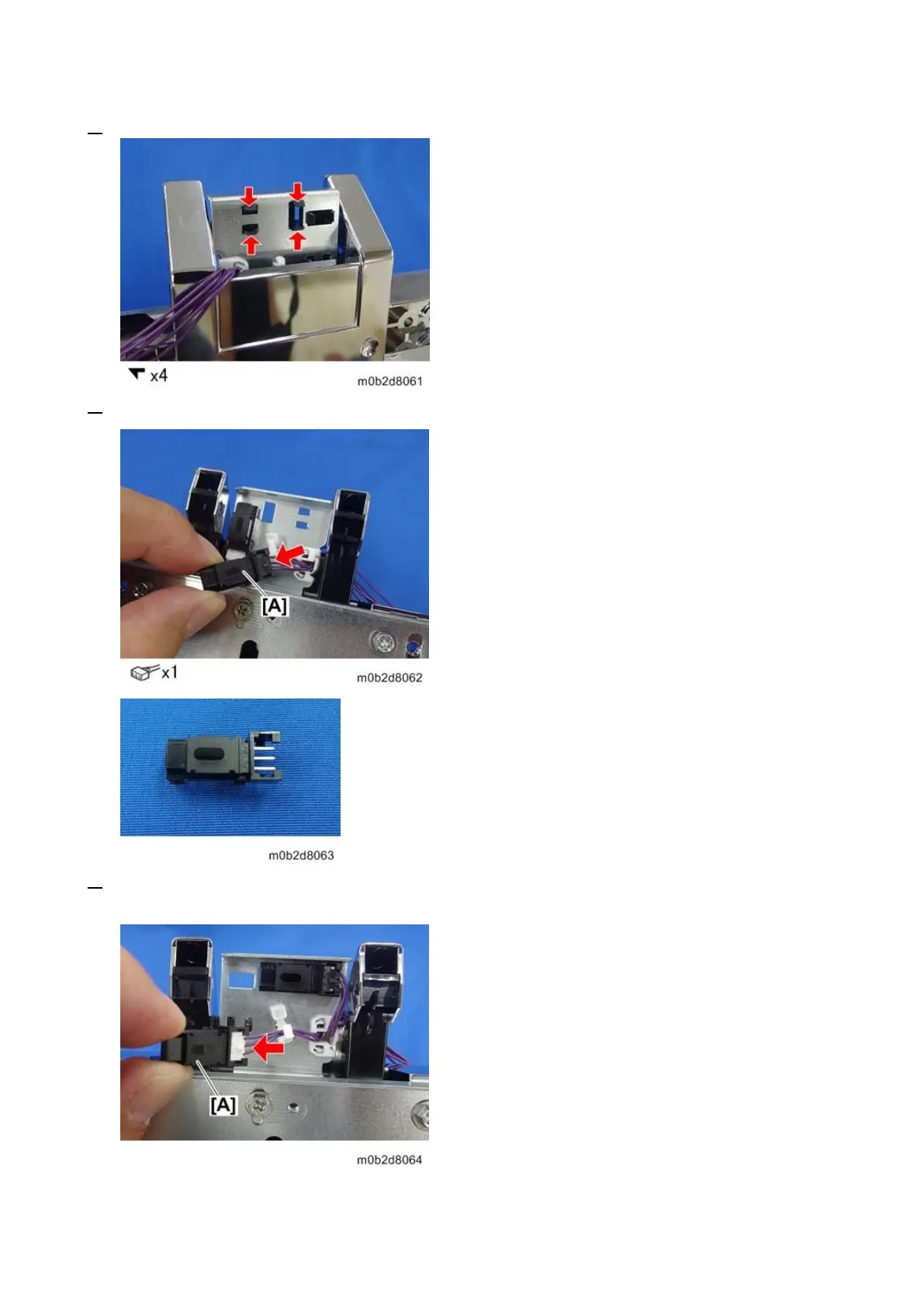

3. Release the pawls of paper upper limit sensor 1.
4. Remove the connector of paper upper limit sensor 1 [A] from the front side.
5. Release the pawl of paper upper limit sensor 2 from the back side and remove the connector of
paper upper limit sensor 2 [A] from the front side.
