1.Replacement and Adjustment
54

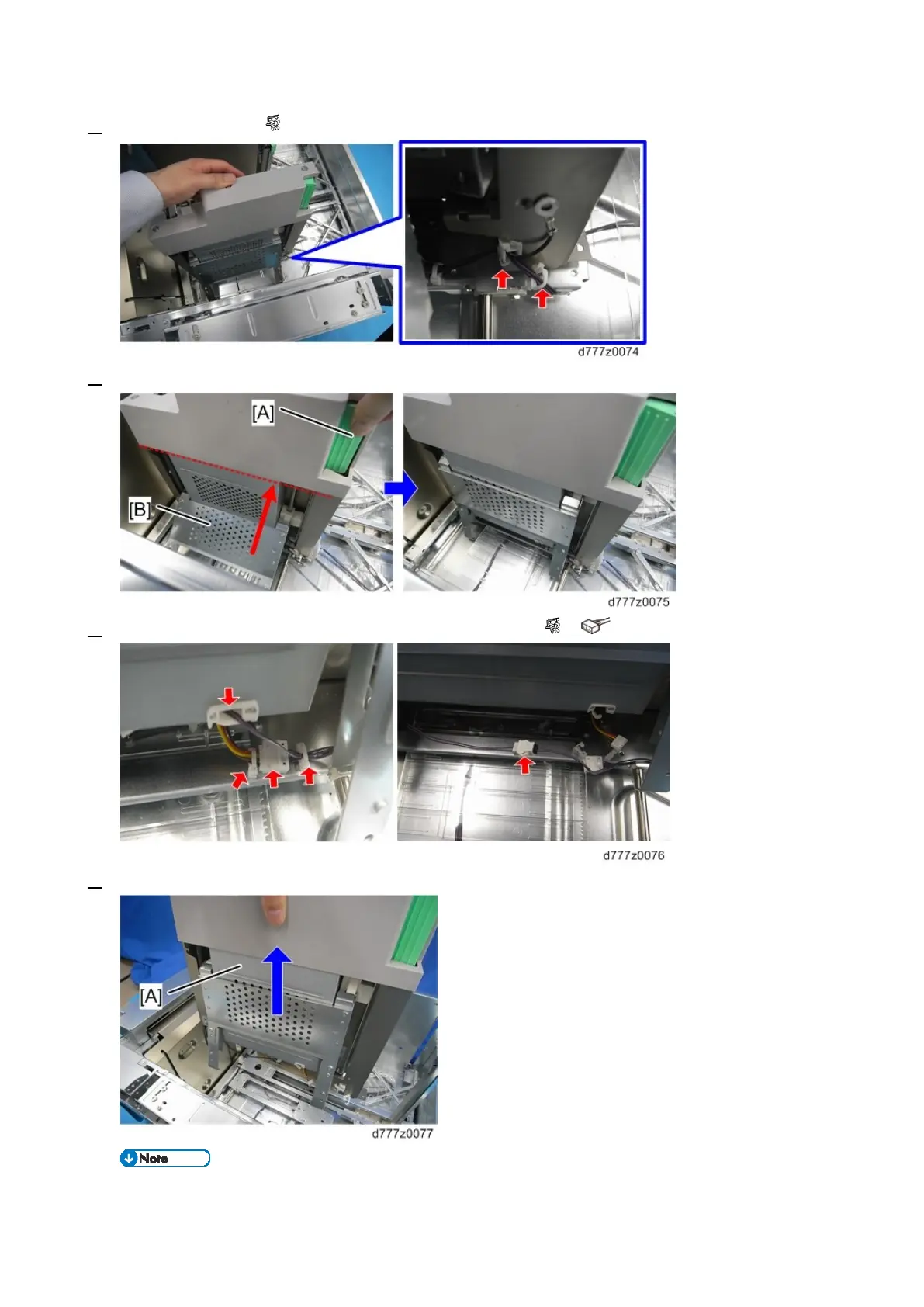

4. Release the clamp ( x2)
5. Hold down the lock lever [A] and raise the side fence [B].
6. Remove the connectors from the bottom of the side fence ( x3, x2).
7. Raise the side fence (front) [A] and remove it.
Install the spring on the end face shaft as shown in the photo.
