1.Replacement and Adjustment
64

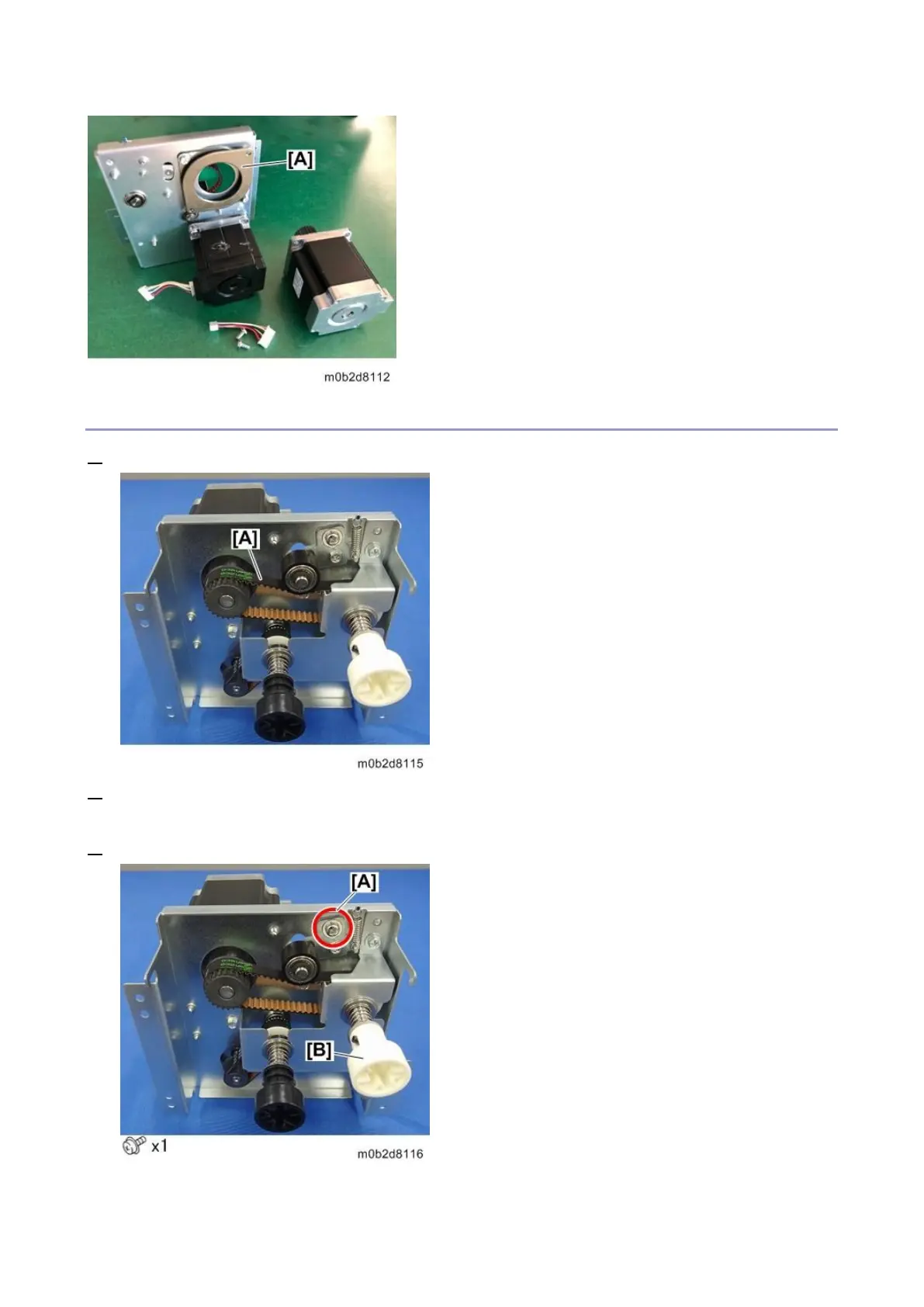

Re-installation
1. Make sure that the motor is correctly placed on the timing belt [A].
2. Loosen the screw [A] slightly to let the tensioner move, and then rotate the coupling shaft [B] two or
three cycles.
3. Tighten the screw [A].
