4.13 PHOTODIODE WITH PLUG ID 1707388001
RIELE BERLIN Photometer 5010 / V4 4.13.1 25.08.2003
Function Description
A photodiode is used as receiver, which gives an electrical signal depending on received light.
Location
The photodiode is situated at the optical unit. The Plug P8 ist connected with the plug ST8 on the mother
board RR-115.
Replacement
The Photometer 5010 has to be opened. The top case has to be separated from the bottom case.
Unplug the photodiode from the mother board RR-115.
Remove the two screws (B).
Remove the adjustment piece (C) of the holder.
Installation
For installation proceed in reverse order.
See also exploded view, chapter „Dismantling“
Shield
wh
1
2
3
P8
A
K
A
K
B
C

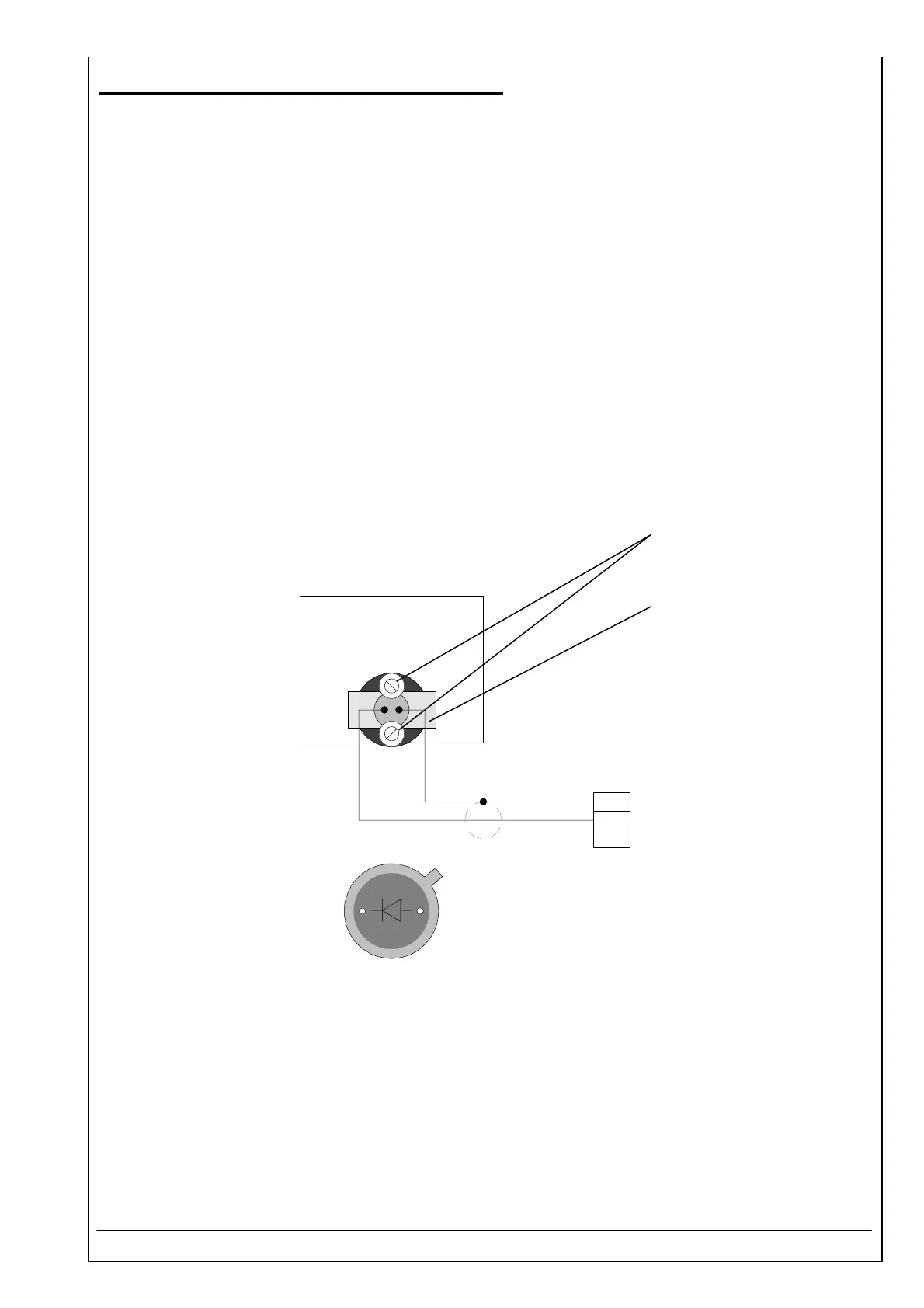

Photodiode
with Anode (A) and Kathode (K)
bottom view
