4.51 BOTTOM CASE ID 1706861001
RIELE BERLIN Photometer 5010 / V4 4.51.1 24.08.2003
Function Description

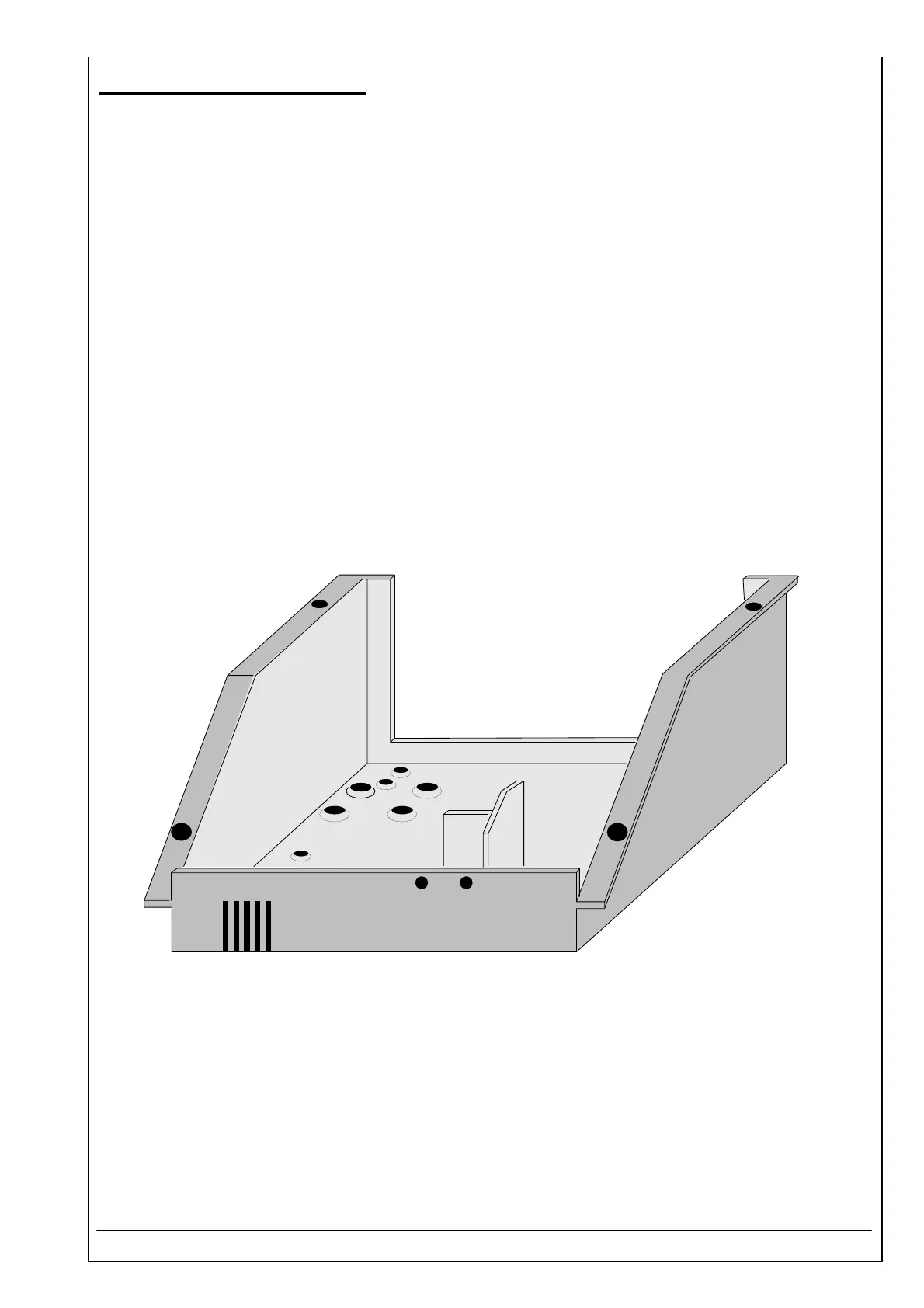

The bottom case is one of the two main parts of the housing.
Location
Bottom of Photometer 5010
Replacement
The Photometer 5010 has to be opened. The top case has to be separated from the bottom case.
Remove the lamp shield. The lamp shield is fixed with two screws at the bottom case.
The groundplane has to be separated from the bottom case. The groundplane is fixed by six srews with the
bottom case.
Remove the bottom case from the groundplane.
Installation
For installation proceed in reverse order.
See also exploded view, chapter „Dismantling“
