4.24 LAMP HOLDER ID 1707205001
RIELE BERLIN Photometer 5010 / V4 4.24.1 23.08.2003
Function Description
The lamp holder is used for fixing the halogen lamp.
Location
Optical unit
Replacement
The Photometer 5010 has to be opened. The top case has to be separated from the bottom case.
Remove the lamp shield. The lamp shield is fixed with two screws at the bottom case.
Loosen clamp screw (alan key) and remove holder with lamp.
Installation
For installation proceed in reverse order.

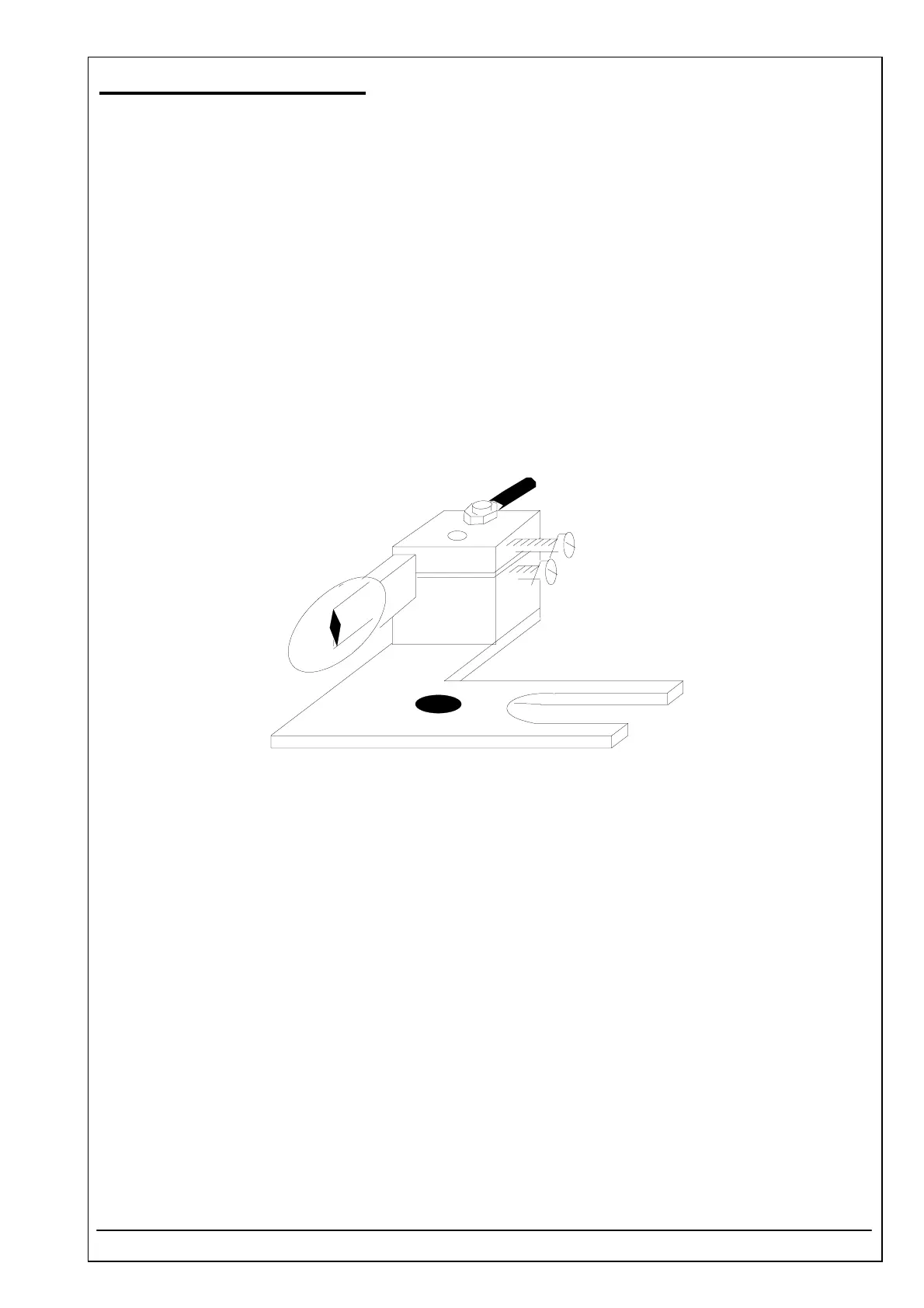

See also exploded view, chapter „Dismantling“
