Riele Photometer 5010 - Tooth Belt

4.17 TOOTH BELT ID 1707558001
RIELE BERLIN Photometer 5010 / V4 4.17.1 22.08.2003
Function Description

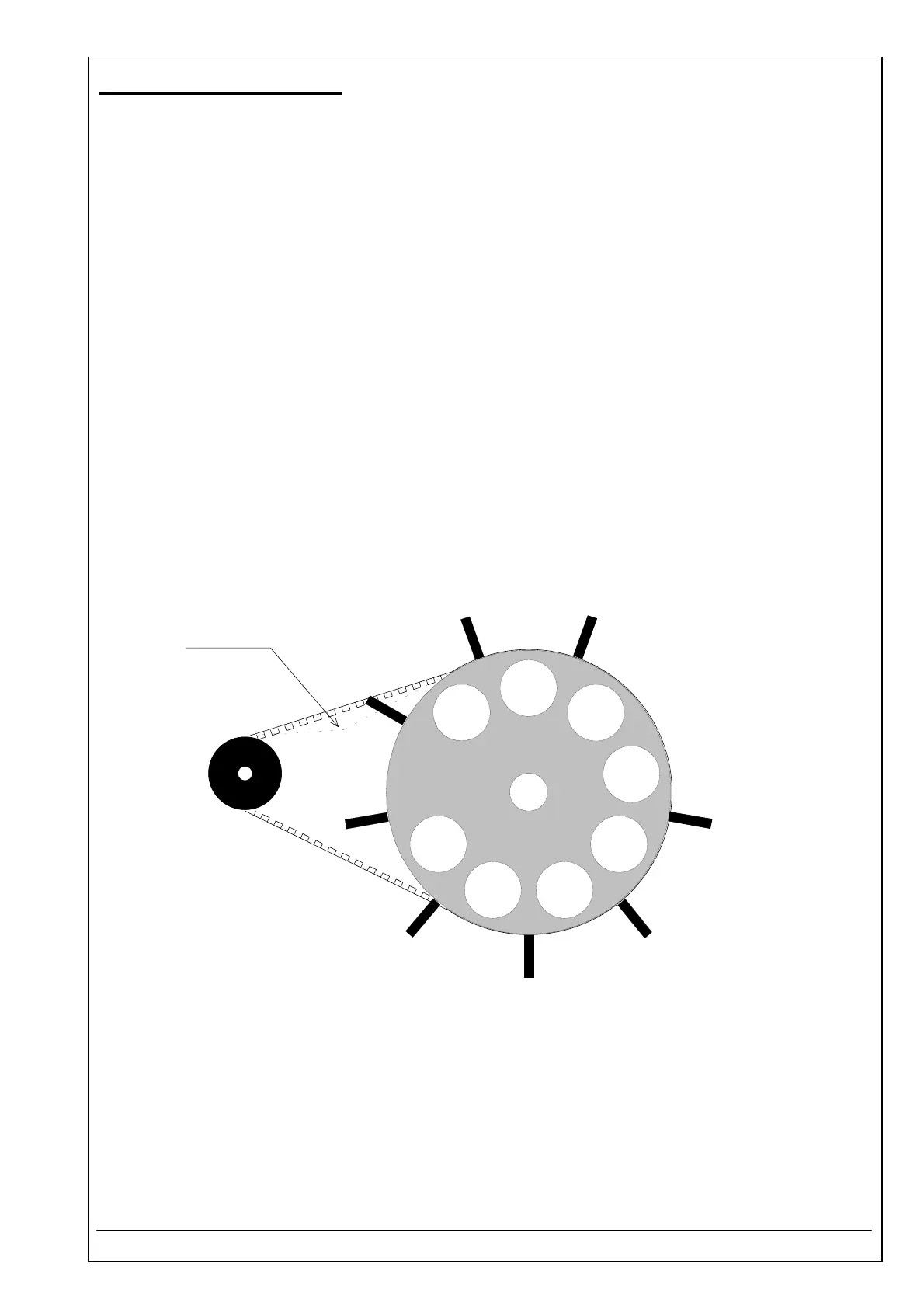

The tooth belt is used for driving the filter wheel.
Location
Optical unit
Replacement
The Photometer 5010 has to be opened. The top case has to be separated from the bottom case.
Remove optical unit (see chapter 4.10)
Remove filter wheel axle and filter wheel.
Remove tooth belt.
Installation
For installation proceed in reverse order.
Adjust belt tension by moving step motor.
See also exploded view, chapter „Dismantling“
340
405 546
578
492
623
#7
#8
3 - 4 mm
