4.14 HEATING UNIT ID 1707612001
RIELE BERLIN Photometer 5010 / V4 4.14.1 23.08.2003
Function Description
As heating unit a power darlington transistor is used located at the optical unit. The transistor is delivered with
plug.
Location
Optical unit.
Replacement
The Photometer 5010 has to be opened. The top case has to be separated from the bottom case.
Remove the optical unit (see chapter 4.10).
Remove 4 screws of cuvette adaptor well with heating unit and 2 screws between cuvette adaptor well and
heating unit.
Loosen screw of heating transistor.
Installation
For installation proceed in reverse order.
See also exploded view, chapter „Dismantling“

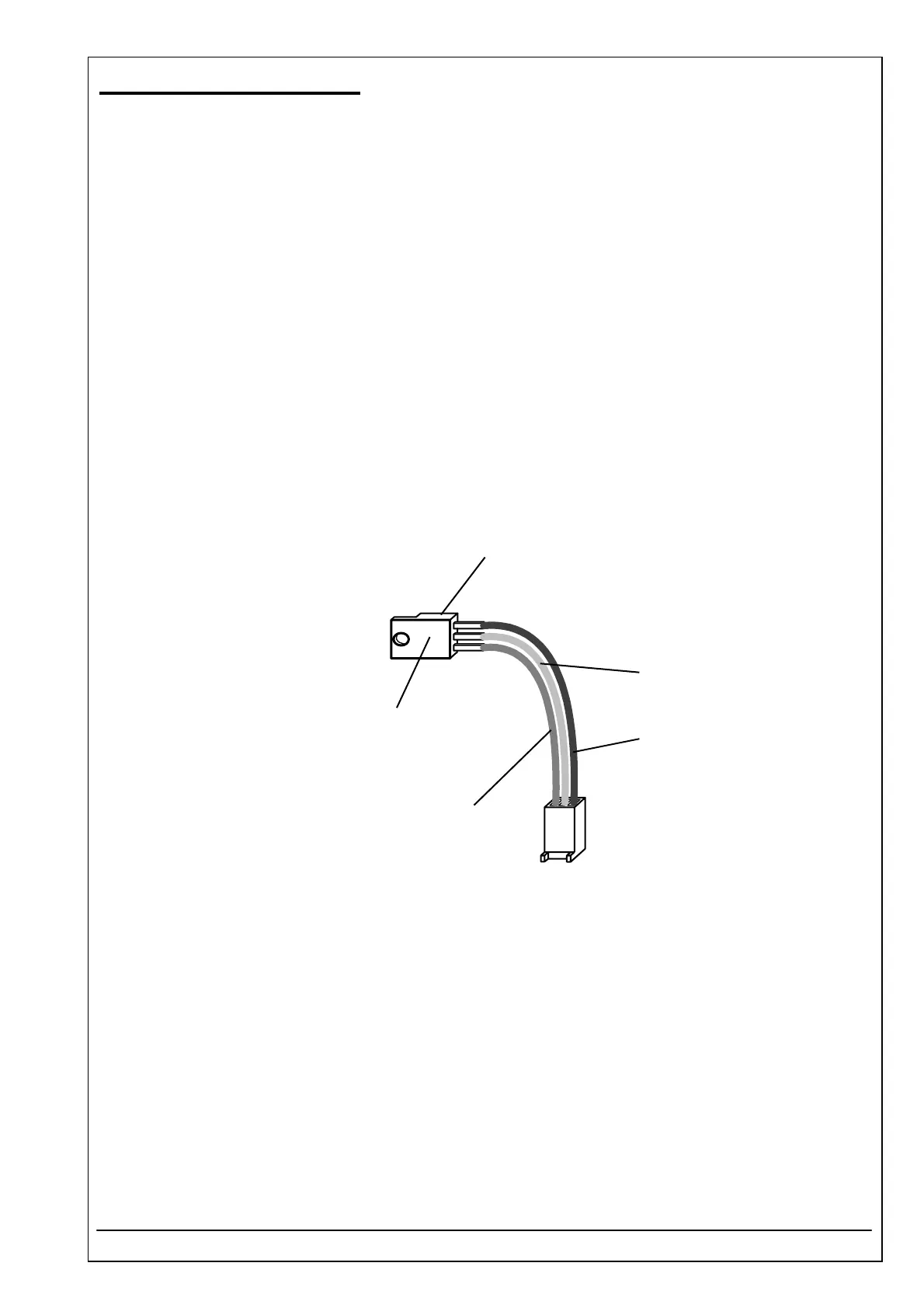

P4
orange
violet
yellow
thermal compound
TIP 132
