Riele Photometer 5010 - Pump Motor with Plug

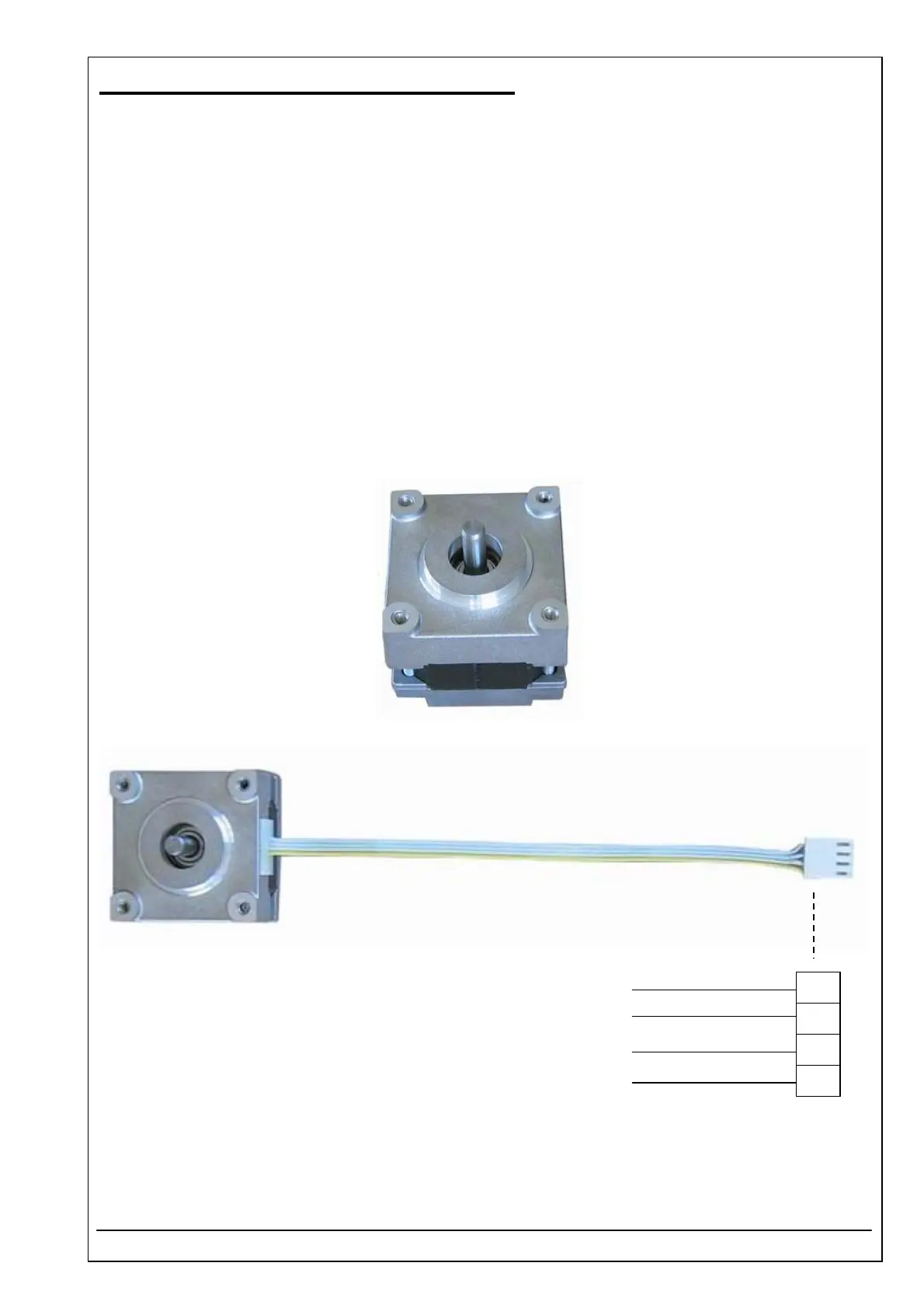

4.16 PUMP MOTOR WITH PLUG ID 5010-017
RIELE BERLIN Photometer 5010 / V4 4.16.1 04.09.2003
Function Description
The peristaltic pump is used for sample aspiration into the flow-through cell. A step motor drives the rotor of
the pump.
Location
Optical unit
Replacement
The Photometer 5010 has to be opened. The top case has to be separated from the bottom case.
Remove optical unit (see chapter 4.10).
Remove pump wheel with clamp screw (alan key).
Loosen 4 screws of pump motor.
Installation
For installation proceed in reverse order.
See also exploded view, chapter „Dismantling“
4
3
2
1
P5
y
e
g
r
g
r
g
r
