Riele Photometer 5010 - Filter Wheel

4.11 FILTER WHEEL ID 5010-004
RIELE BERLIN Photometer 5010 / V4 4.11.1 04.09.2003
Function Description
The filter wheel has eight filter positions. Six filters with standard wavelengths are equipped.
The wavelengths are: 340 nm, 405 nm, 492 nm, 546 nm, 578 nm and 623 nm
Location
Optical unit
Replacement
The Photometer 5010 has to be opened. The top case has to be separated from the bottom case.
Remove optical unit (see chapter 4.10)
Remove filter wheel axle and filter wheel.
Installation
For installation proceed in reverse order.

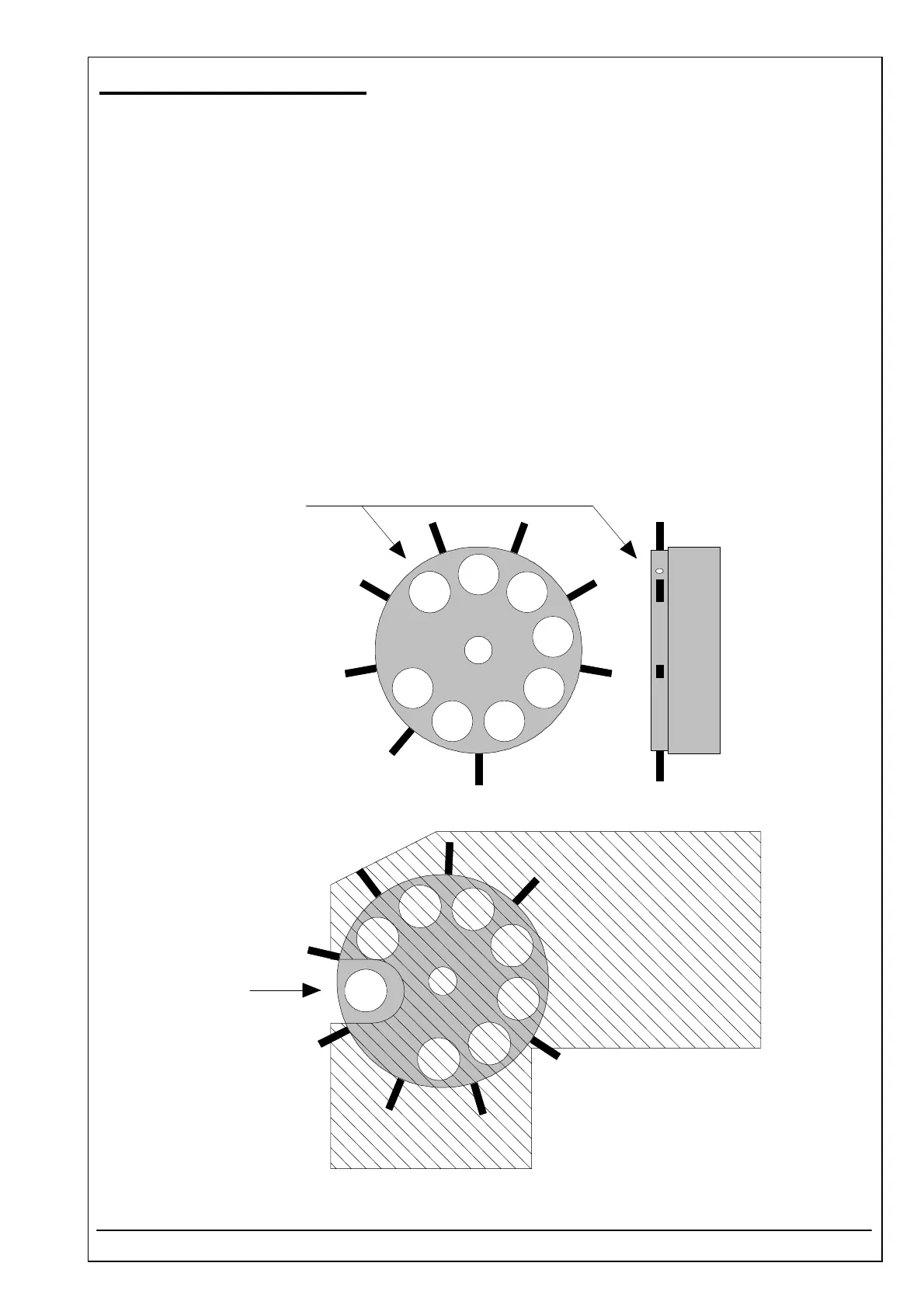

See also exploded view, chapter „Dismantling“
340
405
546
578
492
623
#7
#8
White mark
of filterglass
340 nm
340
405
546
578
492
623
#7
#8
White mark
of filterglass
340 nm
