4.40 MOTHER BOARD RR-115 ID 5010-115
RIELE BERLIN Photometer 5010 / V4 4.40.7 22.09.2003
18. Select current sensitivity level V7 by numerical keys [7].
19. Interrupt the light path by turning the filter wheel into dark position F9. The filter position can be changed
by [MODE] [9].
20. Set the DVM to the smallest voltage range.
21. Adjust the voltage to 0.0 mVDC with potentiometer P3.
22. Check all sensitivity level V0 up to V7. The AD-transducer values shall increase or decrease step by
step. For example valid values for the increasing case could be:
V0: 16865, V1: 16869, V2: 16872, V3: 16887, V4: 16899, V5: 16901, V6: 16923, V7: 16933
The deviation between V0 and V7 shall be smaller than absolute 200 points.
23. Finish the operation with [BREAK].

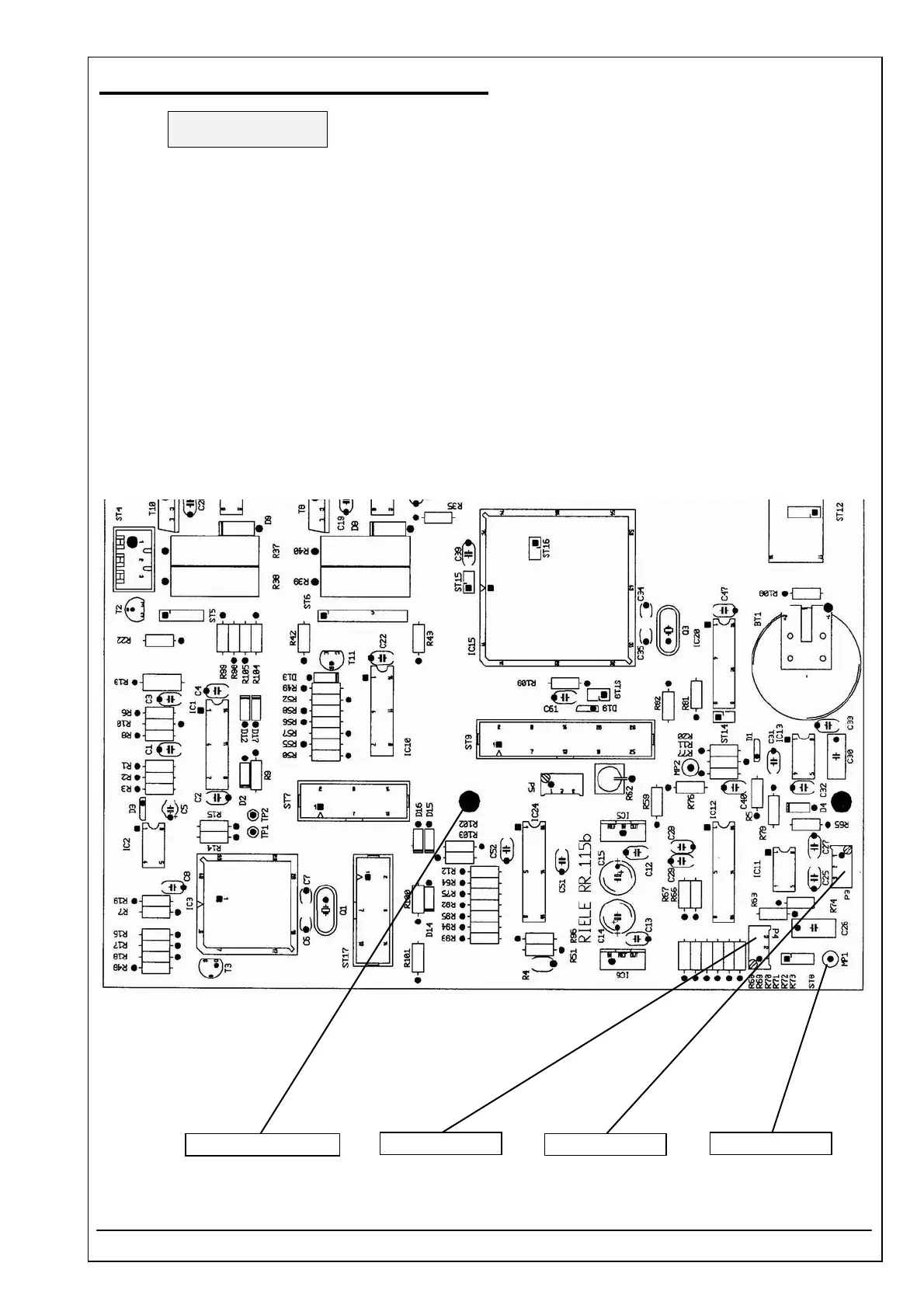

ADC COUNTS U9
7 17933 F9
P3
P4
MP1
Ground connector
